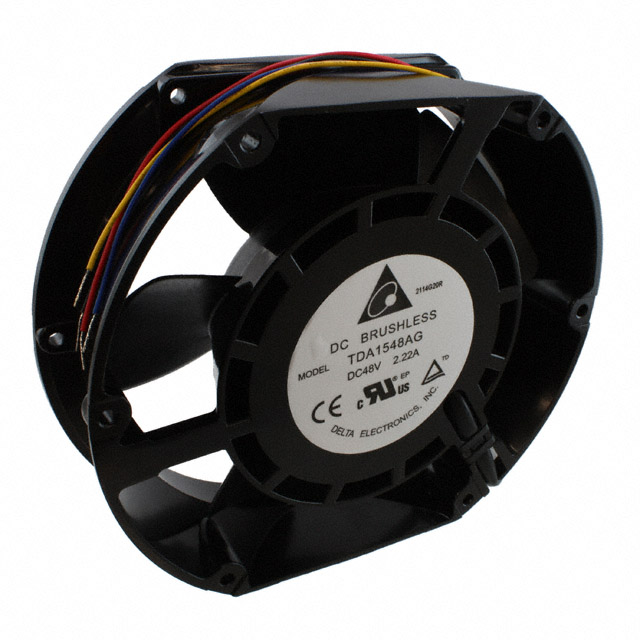

TDA1548AG

Obsolete

Delta Electronics

FAN AXIAL 172X50.8MM 48VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 172X50.8MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	TDA1548AG

Air Flow	402.1 CFM
Air Flow	11.26 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1.85 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	80000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	73.3 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	88.8 W
RPM	5400 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	150 mm
Static Pressure	710.9 Pa
Static Pressure	2.854 in H2O
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	60 V
Voltage Range [Min]	30 VDC
Weight	771.1 g
Weight	1.7 lbs
Width [y]	2 "

Part	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Power (Watts)	Noise	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Bearing Type	Material - Blade	Features	Approval Agency	Lifetime @ Temp.	Material - Frame	Static Pressure	Static Pressure	Voltage - Rated [custom]	Air Flow	Air Flow	Width [y]	Voltage Range [Max]	Voltage Range [Min]	Weight	Weight	Termination	Current Rating (Amps)	RPM
Delta Electronics TDA1548AG	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	88.8 W	73.3 dB(A)	Rectangular/Rounded	150 mm	172 mm	Ball	Plastic	Locked Rotor Protection PWM Control Speed Sensor (Tach)	CE CSA UL VDE	80000 Hrs	Aluminum	710.9 Pa	2.854 in H2O	48 VDC	402.1 CFM	11.26 m³/min	2 "	60 V	30 VDC	771.1 g	1.7 lbs	4 Wire Leads	1.85 A	5400 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Rectangular/Rounded - 172mm L x 150mm H Ball 402.1 CFM (11.26m³/min) 4 Wire Leads
