A02ZR02ZR28H254B

Active

JST Sales America Inc.

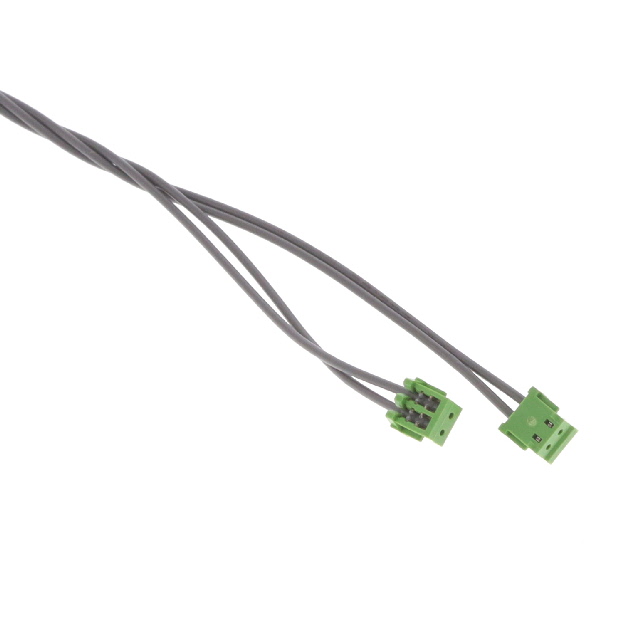

JUMPER 02ZR-8M-P - 02ZR-8M-P 10"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 02ZR-8M-P - 02ZR-8M-P 10"

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Cable Termination	Pitch - Connector	Pitch - Connector	Color	Number of Rows	Connector Type	Length	Length	Length	Contact Finish	Length	Length [x]	Length [x]	Length [x]
JST Sales America Inc. A02ZR02ZR28H254A	2	IDC	0.059 "	1.5 mm	Gray Individual	1	Socket to Socket Reversed	10 in	0.833 ft	254 mm	Tin
JST Sales America Inc. A02ZR02ZR28H152B	2	IDC	0.059 "	1.5 mm	Gray Individual	1	Socket to Socket	6 "		152.4 mm	Tin	0.5 '
JST Sales America Inc. A02ZR02ZR28H254B	2	IDC	0.059 "	1.5 mm	Gray Individual	1	Socket to Socket	10 in	0.833 ft	254 mm	Tin
JST Sales America Inc. A02ZR02ZR28H51A	2	IDC	0.059 "	1.5 mm	Gray Individual	1	Socket to Socket Reversed	2 "	0.167 '	50.8 mm	Tin
JST Sales America Inc. A02ZR02ZR28H305B	2	IDC	0.059 "	1.5 mm	Gray Individual	1	Socket to Socket		1 ft	304.8 mm	Tin
JST Sales America Inc. A02ZR02ZR28H102B	2	IDC	0.059 "	1.5 mm	Gray Individual	1	Socket to Socket				Tin		4 "	0.333 ft	101.6 mm
JST Sales America Inc. A02ZR02ZR28H305A	2	IDC	0.059 "	1.5 mm	Gray Individual	1	Socket to Socket Reversed		1 ft	304.8 mm	Tin
JST Sales America Inc. A02ZR02ZR28H152A	2	IDC	0.059 "	1.5 mm	Gray Individual	1	Socket to Socket Reversed	6 "		152.4 mm	Tin	0.5 '
JST Sales America Inc. A02ZR02ZR28H102A	2	IDC	0.059 "	1.5 mm	Gray Individual	1	Socket to Socket Reversed				Tin		4 "	0.333 ft	101.6 mm
JST Sales America Inc. A02ZR02ZR28H203A	2	IDC	0.059 "	1.5 mm	Gray Individual	1	Socket to Socket Reversed	8 in	0.667 ft	203.2 mm	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Cable Assembly Rectangular Socket to Socket 0.833' (254.00mm, 10.00")
