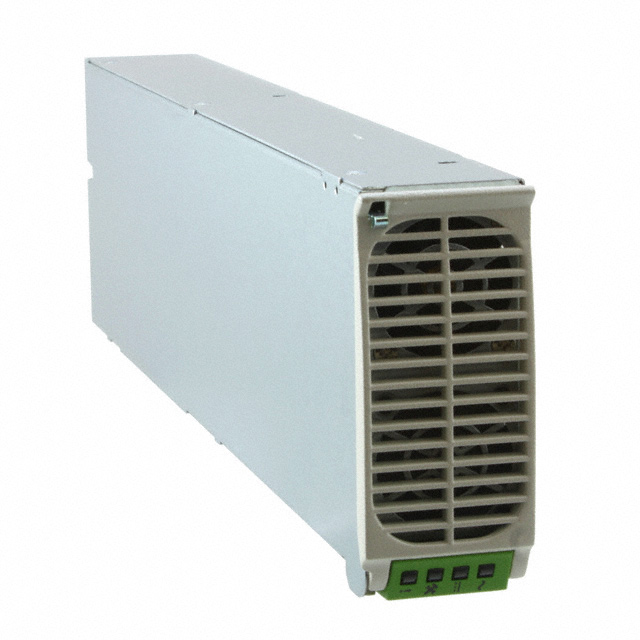

CP2000AC54TEP

Active

OmniOn Power™

AC/DC CONVERTER 54V 2000W

Search across all available documentation for this part.

Active

OmniOn Power™

AC/DC CONVERTER 54V 2000W

Technical Specifications

Parameters and characteristics for this part

Specification	CP2000AC54TEP

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	37 A
Efficiency	95 %
Features	Load Sharing, PMBus™, Universal Input, Standby Output, Remote Sense, Adjustable Output, PFC, Hot Swappable, I2C Interface
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	75 ¯C
Operating Temperature [Min]	-10 °C
Power (Watts)	2000 W
Size / Dimension [x]	351.8 mm
Size / Dimension [x]	13.85 "
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	1.63 in
Size / Dimension [z]	41.4 mm
Type	Front End
Voltage - Input [Max]	300 VAC, 140 VAC
Voltage - Input [Min]	90 VAC, 185 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	54 V

Part	Mounting Type	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Current - Output 1	Number of Outputs	Applications	Type	Efficiency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Power (Watts)	Features	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]
OmniOn Power™ CP2000AC54TEP	Rack Mount	CE	-10 °C	75 ¯C	3000 V	37 A	1	ITE (Commercial)	Front End	95 %	351.8 mm	13.85 "	4 "	101.6 mm	1.63 in	41.4 mm	2000 W	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	140 VAC 300 VAC	90 VAC 185 VAC	54 V
OmniOn Power™ CP2000DC54PEZ	Rack Mount	CSA	-5 °C	45 °C			1	ITE (Commercial)	Front End	90 %	351.2 mm	13.85 "	4 "	101.6 mm	1.63 in	41.4 mm	2000 W				54 V	37 A	-72 V	-40 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Front End AC DC Converters 1 Output 54V 90 ~ 140 VAC, 185 ~ 300 VAC Input
