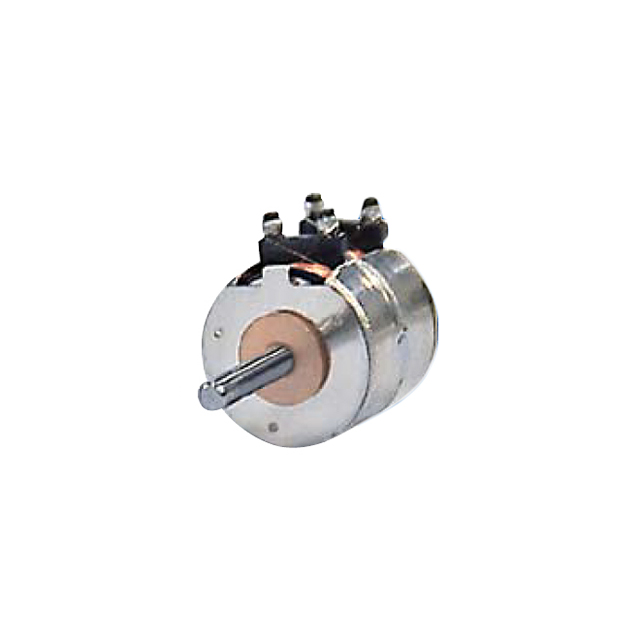

SMS6-F20-HHE2

Active

NMB TECHNOLOGIES

STEPPER MOTOR PM BIPOLAR 3V

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

STEPPER MOTOR PM BIPOLAR 3V

Technical Specifications

Parameters and characteristics for this part

Specification	SMS6-F20-HHE2

Coil Resistance	20 Ohms
Coil Type	Bipolar
Diameter - Shaft [diameter]	0.8 mm
Diameter - Shaft [diameter]	0.031 in
Features	Round Shaft
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Size / Dimension [diameter]	6 mm
Size / Dimension [diameter]	0.236 in
Step Angle	18 °
Termination Style	PC Pin
Type	Permanent Magnet
Voltage - Rated	3 VDC

Part	Voltage - Rated	Coil Resistance	Termination Style	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Step Angle	Coil Type	Type	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Features	Size / Dimension [diameter]	Size / Dimension [diameter]
NMB TECHNOLOGIES SMS6-F20-HHE2	3 VDC	20 Ohms	PC Pin	-10 °C	50 °C	18 °	Bipolar	Permanent Magnet	0.8 mm	0.031 in	Round Shaft	6 mm	0.236 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar Stepper Motor Permanent Magnet Frame Size 20.0 Step 3VDC
