3240688

Active

Phoenix Contact

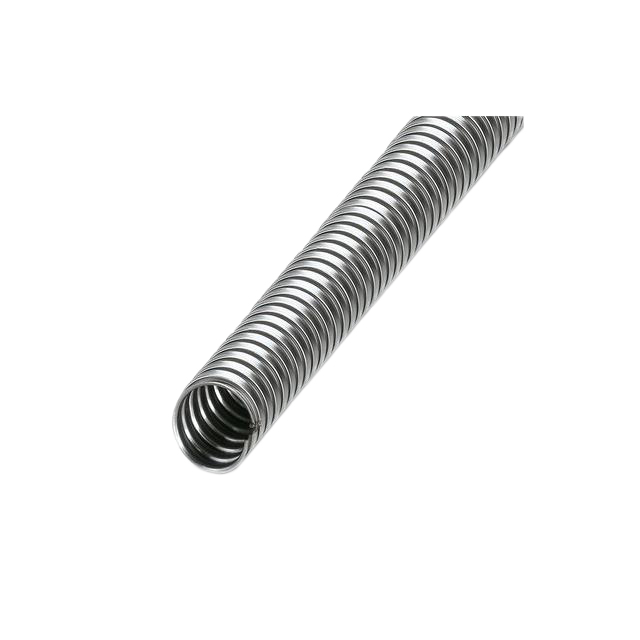

HOSE 0.709" ID SS 3.28' SILVER

Search across all available documentation for this part.

Active

Phoenix Contact

HOSE 0.709" ID SS 3.28' SILVER

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Color	Type Attributes	Type	Length [x]	Length [x]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material	Diameter - Inside [diameter]	Diameter - Inside [diameter]
Phoenix Contact 3240688	600 °C	-200 °C	Silver	Convoluted Corrugated	Protective Hose Wire Loom	1 m	3.28 ft	0.827 in	21 mm
Phoenix Contact 3240697	220 °C	-200 °C	Silver	Convoluted Corrugated	Protective Hose Wire Loom	1 m	3.28 ft	0.394 in	10 mm	Galvanized Halogen Free Steel	0.315 in	8 mm
Phoenix Contact 0804377				Convoluted Corrugated	Protective Hose Wire Loom	1 m	3.28 ft	0.315 in	8 mm	Stainless Steel
Phoenix Contact 3240700	220 °C	-200 °C	Silver	Convoluted Corrugated	Protective Hose Wire Loom	1 m	3.28 ft	1.417 in	36 mm	Galvanized Halogen Free Steel	1.22 in	31 mm
Phoenix Contact 3240687	600 °C	-200 °C	Silver	Convoluted Corrugated	Protective Hose Wire Loom	1 m	3.28 ft	0.551 in	14 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 42.44

General part information

Silver Stainless Steel (SS), Halogen Free Convoluted, Corrugated Wire Loom, Protective Hose 0.709" (18.00mm) 3.28' (1.00m)
