0039532125

Active

Molex

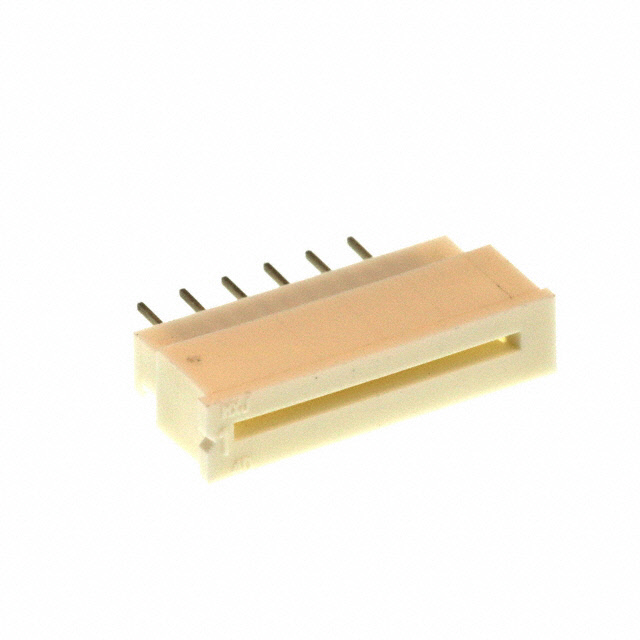

CONN FFC VERT 12POS 1.25MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

0039532125

Active

Molex

CONN FFC VERT 12POS 1.25MM PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0039532125

Actuator Material	Polyester, Polybutylene Terephthalate (PBT)
Cable End Type	Straight
Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Tin Bismuth
Contact Finish Thickness	39.4 Áin
Contact Finish Thickness	1 Ám
Contact Material	Phosphor Bronze
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	7.5 mm
Height Above Board [z]	0.295 in
Housing Material	Polyester, Polybutylene Terephthalate (PBT)
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	30
Mounting Type	Through Hole
Number of Positions	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Pitch [x]	0.049 in
Pitch [x]	1.25 mm
Termination	Solder
Voltage Rating	200 V

003953 Series

Part	Locking Feature	Material Flammability Rating	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Contact Material	Mating Cycles	Number of Positions	Cable End Type	Housing Material	Connector/Contact Type	Termination	FFC, FCB Thickness	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Actuator Material	Flat Flex Type	Mounting Type	Height Above Board [z]	Height Above Board [z]
Molex 0039532244	Slide Lock	UL94 V-0	Tin Bismuth	39.4 Áin	1 Ám	0.213 in	5.4 mm	Phosphor Bronze	30	24	Straight	Polybutylene Terephthalate (PBT) Polyester	Contacts Top	Solder	0.3 mm	0.049 in	1.25 mm	-20 C	80 C	200 V	Polybutylene Terephthalate (PBT) Polyester	FFC FPC	Through Hole Right Angle
Molex 0039532054	Slide Lock	UL94 V-0	Tin Bismuth	39.4 Áin	1 Ám	0.213 in	5.4 mm	Phosphor Bronze	30		Straight	Polybutylene Terephthalate (PBT) Polyester	Contacts Top	Solder	0.3 mm	0.049 in	1.25 mm	-20 C	80 C	200 V	Polybutylene Terephthalate (PBT) Polyester	FFC FPC	Through Hole Right Angle
Molex 0039532285	Slide Lock	UL94 V-0	Tin Bismuth	39.4 Áin	1 Ám			Phosphor Bronze	30	28	Straight	Polybutylene Terephthalate (PBT) Polyester	Contacts Vertical - 1 Sided	Solder	0.3 mm	0.049 in	1.25 mm	-20 C	80 C	200 V	Polybutylene Terephthalate (PBT) Polyester	FFC FPC	Through Hole	7.5 mm	0.295 in
Molex 0039532325	Slide Lock	UL94 V-0	Tin Bismuth	39.4 Áin	1 Ám			Phosphor Bronze	30		Straight	Polybutylene Terephthalate (PBT) Polyester	Contacts Vertical - 1 Sided	Solder	0.3 mm	0.049 in	1.25 mm	-20 C	80 C	200 V	Polybutylene Terephthalate (PBT) Polyester	FFC FPC	Through Hole	7.5 mm	0.295 in
Molex 0039532324	Slide Lock	UL94 V-0	Tin Bismuth	39.4 Áin	1 Ám	0.213 in	5.4 mm	Phosphor Bronze	30		Straight	Polybutylene Terephthalate (PBT) Polyester	Contacts Top	Solder	0.3 mm	0.049 in	1.25 mm	-20 C	80 C	200 V	Polybutylene Terephthalate (PBT) Polyester	FFC FPC	Through Hole Right Angle
Molex 0039532125	Slide Lock	UL94 V-0	Tin Bismuth	39.4 Áin	1 Ám			Phosphor Bronze	30	12	Straight	Polybutylene Terephthalate (PBT) Polyester	Contacts Vertical - 1 Sided	Solder	0.3 mm	0.049 in	1.25 mm	-20 C	80 C	200 V	Polybutylene Terephthalate (PBT) Polyester	FFC FPC	Through Hole	7.5 mm	0.295 in
Molex 0039532134	Slide Lock	UL94 V-0	Tin Bismuth	39.4 Áin	1 Ám	0.213 in	5.4 mm	Phosphor Bronze	30	13	Straight	Polybutylene Terephthalate (PBT) Polyester	Contacts Top	Solder	0.3 mm	0.049 in	1.25 mm	-20 C	80 C	200 V	Polybutylene Terephthalate (PBT) Polyester	FFC FPC	Through Hole Right Angle
Molex 0039532344	Slide Lock	UL94 V-0	Tin Bismuth	39.4 Áin	1 Ám	0.213 in	5.4 mm	Phosphor Bronze	30	34	Straight	Polybutylene Terephthalate (PBT) Polyester	Contacts Top	Solder	0.3 mm	0.049 in	1.25 mm	-20 C	80 C	200 V	Polybutylene Terephthalate (PBT) Polyester	FFC FPC	Through Hole Right Angle
Molex 0039532295	Slide Lock	UL94 V-0	Tin Bismuth	39.4 Áin	1 Ám			Phosphor Bronze	30	29	Straight	Polybutylene Terephthalate (PBT) Polyester	Contacts Vertical - 1 Sided	Solder	0.3 mm	0.049 in	1.25 mm	-20 C	80 C	200 V	Polybutylene Terephthalate (PBT) Polyester	FFC FPC	Through Hole	7.5 mm	0.295 in
Molex 0039532145	Slide Lock	UL94 V-0	Tin Bismuth	39.4 Áin	1 Ám			Phosphor Bronze	30	14	Straight	Polybutylene Terephthalate (PBT) Polyester	Contacts Vertical - 1 Sided	Solder	0.3 mm	0.049 in	1.25 mm	-20 C	80 C	200 V	Polybutylene Terephthalate (PBT) Polyester	FFC FPC	Through Hole	7.5 mm	0.295 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.42
		10	$ 1.18
		80	$ 0.98
		1800	$ 0.74
		2700	$ 0.71

Description

General part information

003953 Series

12 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.049" (1.25mm) Through Hole
