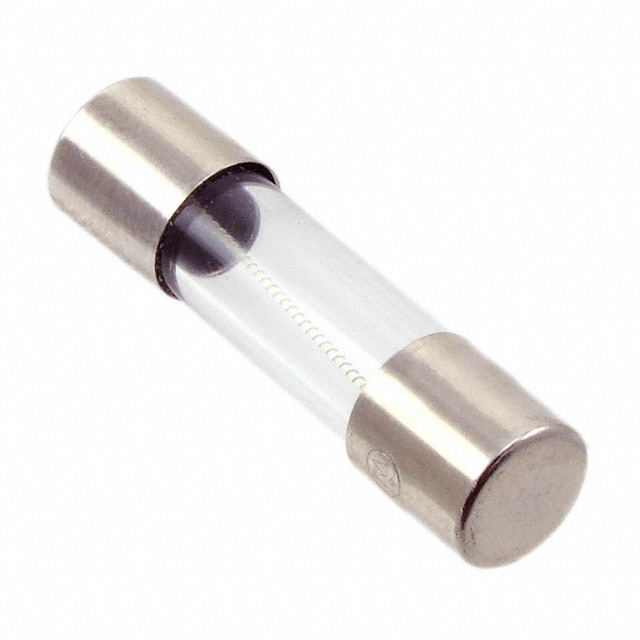

20103150021P
ActiveLittelfuse/Commercial Vehicle Products
FUSE CARTRIDGE MEDIUM TIME DELAY ACTING 0.315A 250V HOLDER CARTRIDGE 5 X 20MM GLASS BULK CULUS
Deep-Dive with AI
Search across all available documentation for this part.
20103150021P
ActiveLittelfuse/Commercial Vehicle Products
FUSE CARTRIDGE MEDIUM TIME DELAY ACTING 0.315A 250V HOLDER CARTRIDGE 5 X 20MM GLASS BULK CULUS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 20103150021P |
|---|---|
| Approval Agency | cULus |
| Breaking Capacity @ Rated Voltage | 80 A |
| Current Rating (Amps) | 0.315 A |
| Melting I²t | 0.16 |
| Mounting Type | Requires Holder |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case [x] | 5 mm |
| Package / Case [y] | 20 mm |
| Response Time | Medium Blow |
| Size / Dimension [diameter] | 5.2 mm |
| Size / Dimension [diameter] | 0.205 in |
| Size / Dimension [x] | 0.787 in |
| Size / Dimension [x] | 20 mm |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
0219004 Series
5x20mm time-Lag glass body cartridge fuse designed to IEC specification
