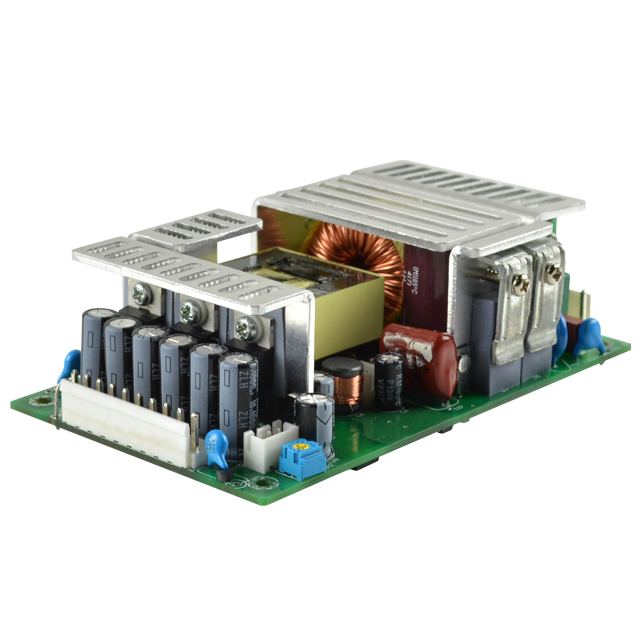

VOF-280-15

Obsolete

CUI Inc.

AC/DC CONVERTER 15V 168W

Search across all available documentation for this part.

Obsolete

CUI Inc.

AC/DC CONVERTER 15V 168W

Technical Specifications

Parameters and characteristics for this part

Specification	VOF-280-15

Applications	ITE (Commercial)
Approval Agency	EN, FCC, TUV, UL, IEC, SIQ, CB Scheme, CSA
Current - Output 1	11.2 A
Efficiency	90 %
Features	Universal Input, Adjustable Output, PFC, Standby Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	280 W, 168 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	35 mm
Size / Dimension [z]	1.38 in
Standard Number	61000-6-3, 61000-3-3, 61000-6-1, C22.2 No. 60950-1, 60950-1, 61204-3, 61000-3-2
Type	Open Frame
Voltage - Input [Max]	277 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

Part	Standard Number	Voltage - Isolation	Features	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Output 1	Efficiency	Voltage - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Type	Applications	Mounting Type	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)
CUI Inc. VOF-280-15	60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 C22.2 No. 60950-1	3000 V	Adjustable Output PFC Standby Output Universal Input	35 mm	1.38 in	3 "	5 in	127 mm	76.2 mm	11.2 A	90 %	15 V	277 VAC	90 VAC	1	Open Frame	ITE (Commercial)	Chassis Mount	CB Scheme CSA EN FCC IEC SIQ TUV UL	-20 °C	70 °C	168 W 280 W
CUI Inc. VOF-280-36	60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 C22.2 No. 60950-1	3000 V	Adjustable Output PFC Standby Output Universal Input	35 mm	1.38 in	3 "	5 in	127 mm	76.2 mm	4.67 A	90 %	36 V	277 VAC	90 VAC	1	Open Frame	ITE (Commercial)	Chassis Mount	CB Scheme CSA EN FCC IEC SIQ TUV UL	-20 °C	70 °C	168 W 280 W
CUI Inc. VOF-280-12	60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61204-3 C22.2 No. 60950-1	3000 V	Adjustable Output PFC Standby Output Universal Input	35 mm	1.38 in	3 "	5 in	127 mm	76.2 mm	14 A	88 %	12 V	277 VAC	90 VAC	1	Open Frame	ITE (Commercial)	Chassis Mount	CB Scheme CSA EN FCC IEC SIQ TUV UL	-20 °C	70 °C	168 W 280 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 15V 90 ~ 277 VAC Input
