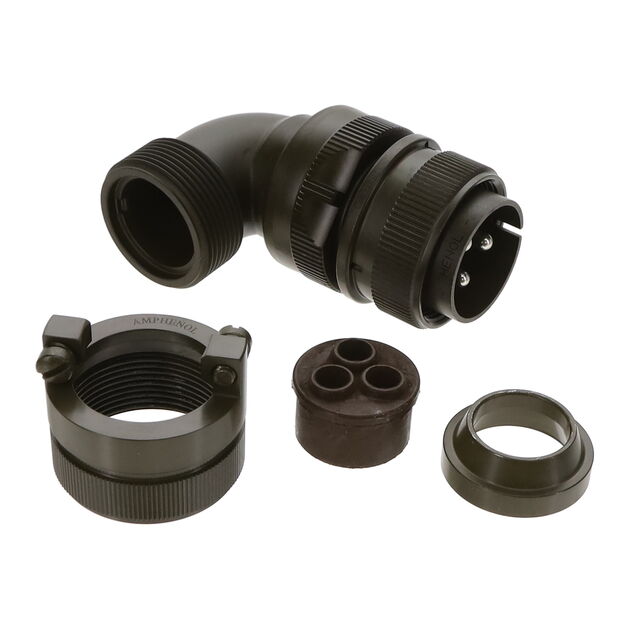

MS3108E20-19P

Active

ITT Cannon, LLC

MIL-DTL 5015 SERIES I

Search across all available documentation for this part.

Active

ITT Cannon, LLC

MIL-DTL 5015 SERIES I

Technical Specifications

Parameters and characteristics for this part

Specification	MS3108E20-19P

Applications	Military, Marine
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Coupling Nut, Cable Clamp
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	19
Shell Size - Insert [Min]	20
Shielding	Unshielded

Part	Connector Type	Shielding	Applications	Primary Material	Voltage Rating	Ingress Protection	Color	Shell Finish	Orientation	Contact Material	Grade	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Mounting Type	Insert Material	Number of Positions	Current Rating (Amps)	Features	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Material
ITT Cannon, LLC MS3108E2024S	Female Sockets Plug	Unshielded	Aviation Industrial Marine Military	Metal	500 VAC 700 VDC	Environment Resistant	Olive Drab	Olive Drab Cadmium	N	Copper Alloy	Military	MIL-DTL-5015	-55 °C	125 °C	Silver	Free Hanging (In-Line) Right Angle	Plastic	4	13 A 46 A	Cable Clamp Coupling Nut	20	24	Aluminum Alloy
ITT Cannon, LLC MS3108E20-19P	Male Pins Plug	Unshielded	Marine Military	Metal		Environment Resistant	Olive Drab	Olive Drab Chromate over Cadmium	N	Copper Alloy		MIL-5015	-55 °C	125 °C	Silver	Free Hanging (In-Line) Right Angle	Neoprene			Cable Clamp Coupling Nut	20	19	Aluminum Alloy
ITT Cannon, LLC MS3108E20-19S	Female Sockets Plug			Metal	500 VAC 700 VDC	Environment Resistant	Olive Drab	Olive Drab Cadmium	N		Military	MIL-DTL-5015	-55 °C	125 °C	Silver	Free Hanging (In-Line) Right Angle			74 A	Cable Clamp Coupling Nut	20	19	Aluminum Alloy
ITT Cannon, LLC MS3108E20-29S	Female Sockets Plug			Metal	500 VAC 700 VDC	Environment Resistant	Olive Drab	Olive Drab Cadmium	N		Military	MIL-DTL-5015	-55 °C	125 °C	Silver	Free Hanging (In-Line) Right Angle			22 A	Cable Clamp Coupling Nut	20	29	Aluminum Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Male Pins Solder Cup
