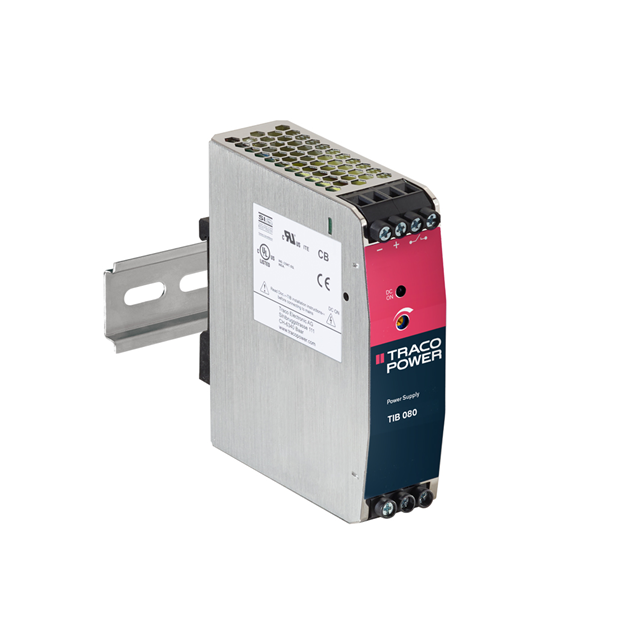

TIB 080-124

Active

Traco Power

AC/DC POWER SUPPLY SINGLE-OUT 24V 3.4A 80W 7-PIN

Search across all available documentation for this part.

Active

Traco Power

AC/DC POWER SUPPLY SINGLE-OUT 24V 3.4A 80W 7-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	TIB 080-124

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	CB, CE, SIQ, cURus, cULus
Current - Output (Max) [Max]	3.4 A
Efficiency	90 %
Features	PFC, Adjustable Output, Universal Input
Input Type	AC
Number of Outputs	1
Size / Dimension [x]	94.2 mm
Size / Dimension [x]	3.71 "
Size / Dimension [y]	32 mm
Size / Dimension [y]	1.26 in
Size / Dimension [z]	114.2 mm
Size / Dimension [z]	114.3 mm
Voltage - Isolation	4.25 kV
Voltage - Output 1	24 V

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Input Type	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Number of Outputs	Approval Agency	Voltage - Output 1	Applications	Features	Current - Output (Max) [Max]	Voltage - Isolation
Traco Power TIB 080-124	94.2 mm	114.2 mm	32 mm	114.3 mm	3.71 "	1.26 in	90 %	AC	85 VAC	264 VAC	1	CB CE cULus cURus SIQ	24 V	Industrial ITE (Commercial)	Adjustable Output PFC Universal Input	3.4 A	4.25 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC POWER SUPPLY SINGLE-OUT 24V 3.4A 80W 7-PIN
