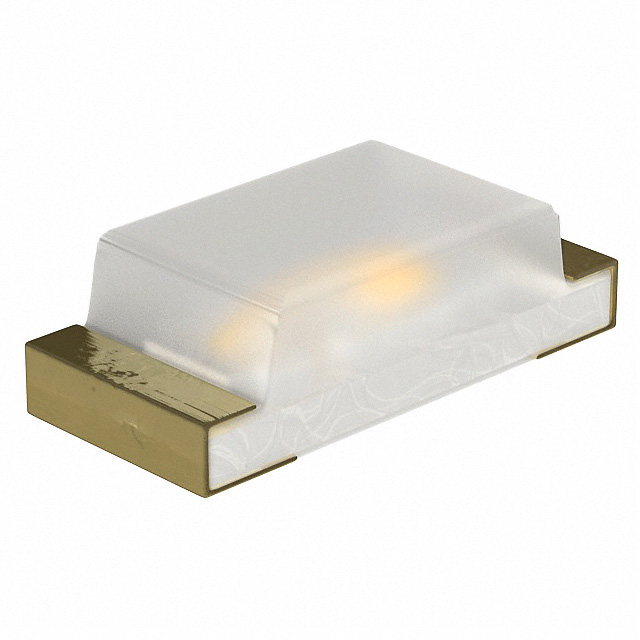

APT1608-WVT55

Active

Kingbright

LED GREEN CLEAR CHIP SMD

Deep-Dive with AI

Search across all available documentation for this part.

APT1608-WVT55

Active

Kingbright

LED GREEN CLEAR CHIP SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APT1608-WVT55

Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Supplier Device Package	Chip LED

APT1608 Series

Part	Current - Test	Configuration	Package / Case	Lens Size [y]	Lens Size [x]	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Lens Transparency	Supplier Device Package	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Lens Style	Color	Mounting Type	Wavelength - Peak	Wavelength - Dominant	Lens Color	Wavelength - Peak [custom]	Height (Max) [Max] [z]
Kingbright APT1608QBC/G	20 mA	Standard	0603 (1608 Metric)	0.8 mm	1.2 mm	160 mcd	3.3 V	Clear	Chip LED	120 °	1.6 mm	0.8 mm	Rectangle with Flat Top	Blue	Surface Mount	461 nm	465 nm	Colorless
Kingbright APT1608-WVT55			0603 (1608 Metric)						Chip LED		1.6 mm	0.8 mm			Surface Mount
Kingbright APT1608SYCK/J3-PRV	20 mA	Standard	0603 (1608 Metric)	0.8 mm	1.2 mm	320 mcd	2 V	Clear	Chip LED	120 °	1.6 mm	0.8 mm	Rectangle with Flat Top	Yellow	Surface Mount	590 nm	590 nm	Colorless
Kingbright APT1608CGCK	20 mA	Standard	0603 (1608 Metric)	0.8 mm	1.2 mm	50 mcd	2.1 V	Clear	Chip LED	120 °	1.6 mm	0.8 mm	Rectangle with Flat Top	Green	Surface Mount		570 nm	Colorless
Kingbright APT1608SECK/J3-PRV	20 mA	Standard	0603 (1608 Metric)	0.8 mm	1.2 mm	350 mcd	2.2 V	Clear	Chip LED	120 °	1.6 mm	0.8 mm	Rectangle with Flat Top	Red	Surface Mount		625 nm	Colorless	640 nm
Kingbright APT1608ZGCK	20 mA	Standard	0603 (1608 Metric)	0.8 mm	1.2 mm	350 mcd	3.3 V	Clear	Chip LED	120 °	1.6 mm	0.8 mm	Rectangle with Flat Top	Green	Surface Mount	515 nm	525 nm	Colorless
Kingbright APT1608LSYCK/J3-PRV	2 mA	Standard	0603 (1608 Metric)	0.8 mm	1.1 mm	25 mcd	1.85 V	Clear	2-SMD	120 °	1.6 mm	0.8 mm	Rectangle with Flat Top	Yellow	Surface Mount	590 nm	590 nm	Colorless
Kingbright APT1608SURCK	20 mA	Standard	0603 (1608 Metric)	0.8 mm	1.2 mm	80 mcd	1.95 V	Clear	Chip LED	120 °	1.6 mm	0.8 mm	Rectangle with Flat Top	Red	Surface Mount	645 nm	630 nm	Colorless
Kingbright APT1608YC	20 mA	Standard	0603 (1608 Metric)	0.8 mm	1.2 mm	8 mcd	2.1 V	Clear	Chip LED	150 °	1.6 mm	0.8 mm	Rectangle with Flat Top	Yellow	Surface Mount	590 nm	588 nm	Colorless
Kingbright APT1608VRCXF/A-5MAV	5 mA	Standard	0603 (1608 Metric)	0.8 mm	1.1 mm	150 mcd	2.8 V	Diffused	Chip LED	160 °	1.6 mm	0.8 mm	Rectangle with Flat Top	Cyan	Surface Mount			Yellow		0.85 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

APT1608 Series

LED Indication - Discrete 0603 (1608 Metric)

Documents

Technical documentation and resources

No documents available
