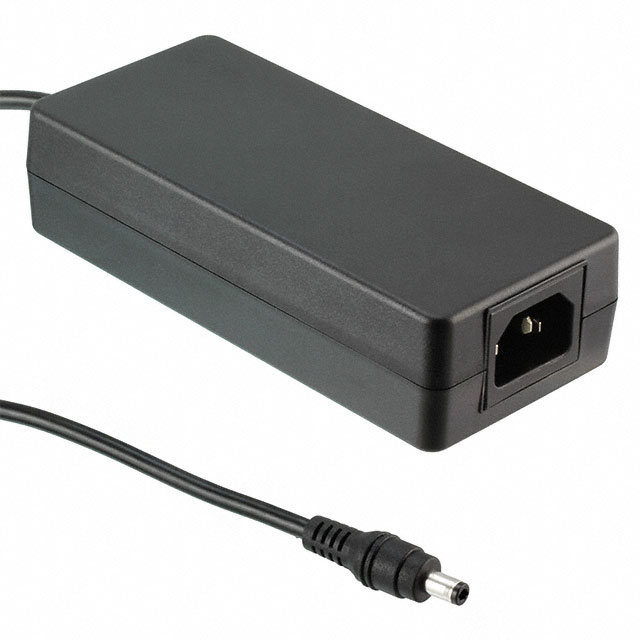

ADP-66CR BE
ObsoleteDelta Electronics
AC/DC DESKTOP ADAPTER 12V 66W
Deep-Dive with AI
Search across all available documentation for this part.
ADP-66CR BE
ObsoleteDelta Electronics
AC/DC DESKTOP ADAPTER 12V 66W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ADP-66CR BE |
|---|---|
| Applications | ITE (Commercial) |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 5.5 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 210 mW |
| Operating Temperature [Max] | 45 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Region Utilized | International |
| Size / Dimension [x] | 135 mm |
| Size / Dimension [x] | 5.31 " |
| Size / Dimension [y] | 62 mm |
| Size / Dimension [y] | 2.44 " |
| Size / Dimension [z] | 1.34 in |
| Size / Dimension [z] | 34.1 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ADP-66CR Series
12V 66 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
