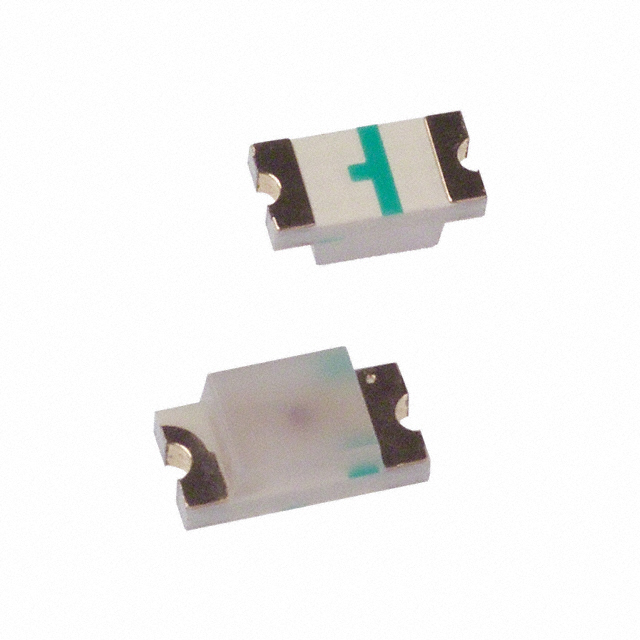

HSMQ-C400
ActiveBroadcom Limited
LED GREEN 1206 SMD
Deep-Dive with AI
Search across all available documentation for this part.
HSMQ-C400
ActiveBroadcom Limited
LED GREEN 1206 SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HSMQ-C400 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 2.65 mm |
| Lens Size [diameter] | 1.62 mm |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 1206 |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 3.4 V |
| Wavelength - Dominant | 522 nm |
| Wavelength - Peak | 515 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10000 | $ 0.45 | |
Description
General part information
HSMQ-C400 Series
Green 522nm LED Indication - Discrete 3.4V 1206 (3216 Metric)
