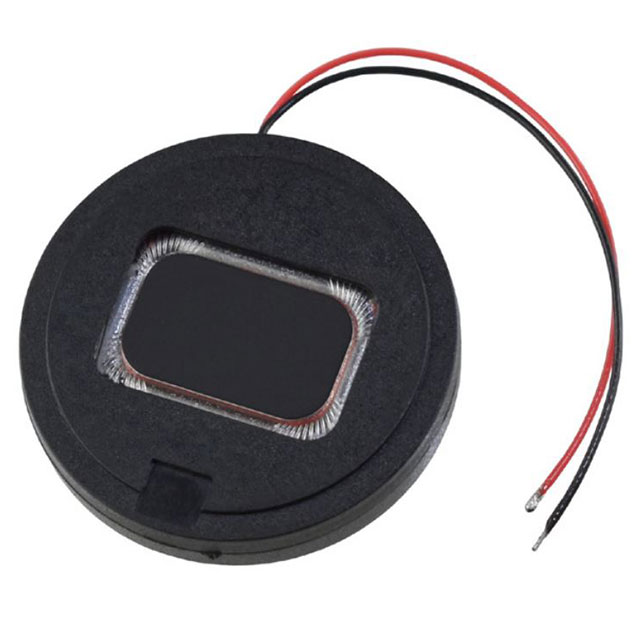

CES-2704-088L050B

Active

CUI Devices

SPEAKER 8OHM 800MW TOP PORT 90DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 8OHM 800MW TOP PORT 90DB

Technical Specifications

Parameters and characteristics for this part

Part	Impedance	Port Location	Power - Rated	Material - Cone	Frequency - Self Resonant	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Efficiency - dBA	Shape	Distortion Rating	Efficiency - Type	Material - Magnet	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Frequency Range [Max]	Frequency Range [Min]	Type	Power - Max [Max]	Efficiency - Testing	Termination	Material - Cone [custom]
CUI Devices CES-2704-088L050B	8 Ohms	Top	0.8 W	Polyetheretherketone (PEEK)	850 Hz	0.193 "	4.9 mm	90 dBA	Round	10 %	Sound Pressure Level (SPL)	Nd-Fe-B	Magnetic	70 °C	-30 ░C	1.063 "	27 mm	20 kHz	500 Hz	Low Profile	1 W	800mW/100mm	Wire Leads with Connector
CUI Devices CES-2704-088L050A	8 Ohms	Top	0.8 W	Polyetheretherketone (PEEK)	850 Hz	0.193 "	4.9 mm	90 dBA	Round	10 %	Sound Pressure Level (SPL)	Nd-Fe-B	Magnetic	70 °C	-30 ░C	1.063 "	27 mm	20 kHz	500 Hz	Low Profile	1 W	800mW/100mm	Wire Leads with Connector
CUI Devices CES-2704-088L050	8 Ohms	Top	0.8 W		850 Hz	0.193 "	4.9 mm	90 dBA	Round		Sound Pressure Level (SPL)	Nd-Fe-B	Magnetic	70 °C	-30 ░C	1.063 "	27 mm	20 kHz	50 Hz	Enclosure Included General Purpose	1 W	800mW/100mm	Wire Leads	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Ohms Low Profile Speaker 800 mW 500 Hz ~ 20 kHz Top Round
