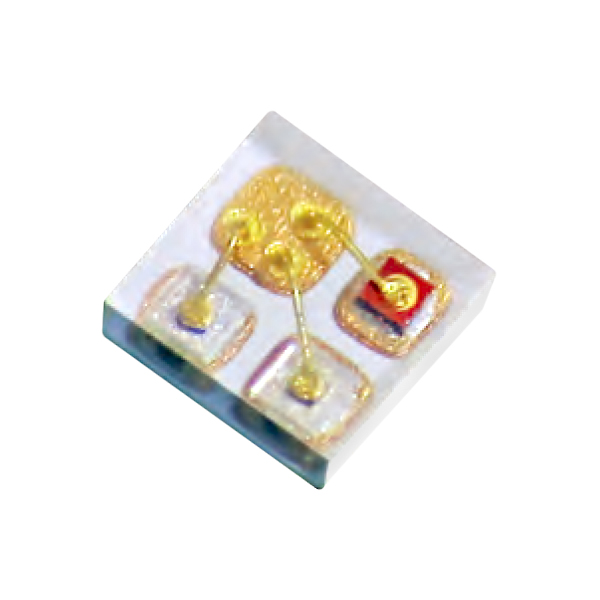

APGF0606VGTPBTSEETC

Active

Kingbright

LED RGB CLEAR 4SMD

Search across all available documentation for this part.

Active

Kingbright

LED RGB CLEAR 4SMD

Technical Specifications

Parameters and characteristics for this part

Specification	APGF0606VGTPBTSEETC

Color	Red, Green, Blue
Configuration	Common Anode
Current - Test [custom]	5 mA
Current - Test [custom]	5 mA
Current - Test [custom]	5 mA
Height (Max) [Max]	0.25 mm
Lens Color	Colorless
Lens Size	0.65 mm
Lens Style	Square with Flat Top
Lens Transparency	Clear
Millicandela Rating [custom]	20 mcd
Millicandela Rating [custom]	90 mcd
Millicandela Rating [custom]	30 mcd
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Size / Dimension [x]	0.65 mm
Size / Dimension [y]	0.65 mm
Supplier Device Package	4-SMD
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ) [custom]	2.9 V
Voltage - Forward (Vf) (Typ) [custom]	3 V
Voltage - Forward (Vf) (Typ) [custom]	1.95 V
Wavelength - Dominant	467 nm, 527 nm, 624 nm
Wavelength - Peak [custom]	632 nm
Wavelength - Peak [custom]	518 nm
Wavelength - Peak [custom]	461 nm

Part	Lens Transparency	Color	Height (Max) [Max]	Supplier Device Package	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Configuration	Wavelength - Dominant	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Mounting Type	Package / Case	Lens Size	Lens Style	Viewing Angle	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Lens Color
Kingbright APGF0606VGTPBTSEETC	Clear	Blue Green Red	0.25 mm	4-SMD	20 mcd	90 mcd	30 mcd	2.9 V	3 V	1.95 V	Common Anode	467 nm 527 nm 624 nm	0.65 mm	0.65 mm	632 nm	518 nm	461 nm	Surface Mount	4-SMD No Lead	0.65 mm	Square with Flat Top	140 °	5 mA	5 mA	5 mA	Colorless

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Red, Green, Blue (RGB) 624nm Red, 527nm Green, 467nm Blue LED Indication - Discrete 1.95V Red, 3V Green, 2.9V Blue 4-SMD, No Lead
