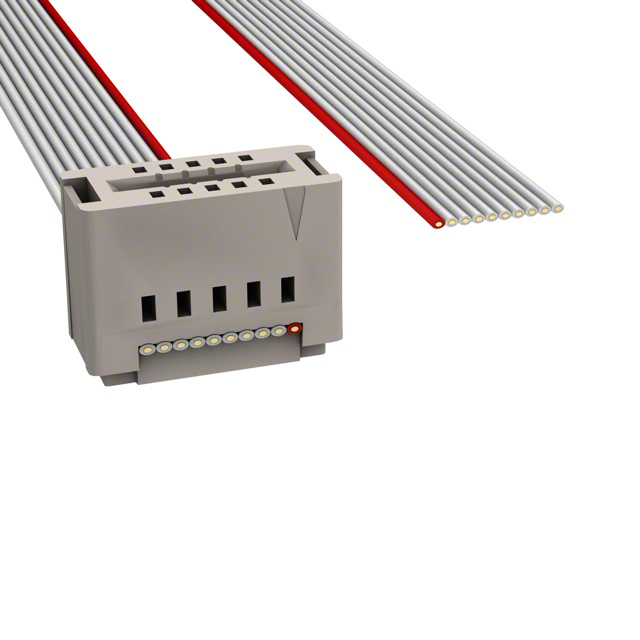

M1EXK-1036J
Obsolete3M (TC)
IDC CABLE - MCE10K/MC10G/X
Deep-Dive with AI
Search across all available documentation for this part.
M1EXK-1036J
Obsolete3M (TC)
IDC CABLE - MCE10K/MC10G/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M1EXK-1036J |
|---|---|
| Cable Termination | IDC |
| Connector Type | Card Edge to Cable |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M1EXK Series
10 Position Cable Assembly Rectangular Card Edge to Cable 3.00' (914.40mm)
Documents
Technical documentation and resources
