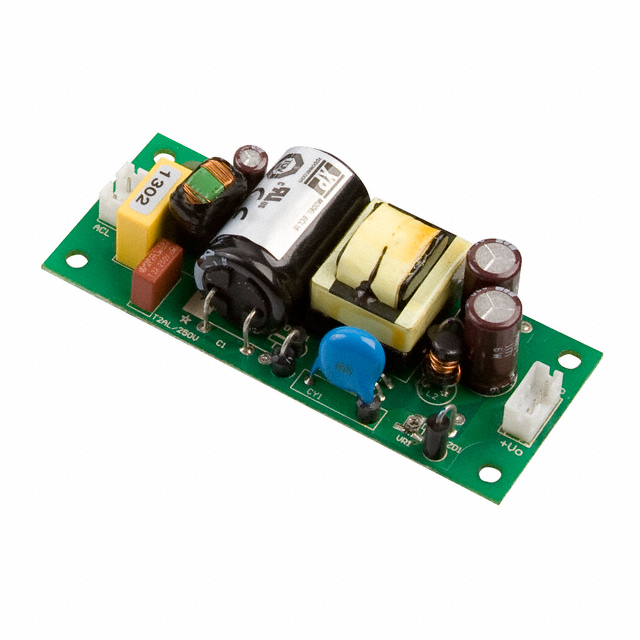

ECL15UD03-T

Active

XP POWER

AC/DC CONVERTER 5V 12V 15W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECL Series UL Certificate ECL Series TUV Certificate +2

ECL15UD03-T

Active

XP POWER

AC/DC CONVERTER 5V 12V 15W

Deep-Dive with AI

DocumentsECL Series UL Certificate ECL Series TUV Certificate +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECL15UD03-T

Applications	ITE (Commercial)
Current - Output 1	1.5 A
Current - Output 2	625 mA
Efficiency	81 %
Features	Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	15 W
Size / Dimension [x]	3.1 in
Size / Dimension [x]	78.7 mm
Size / Dimension [y]	31.7 mm
Size / Dimension [y]	1.25 in
Size / Dimension [z]	0.78 in
Size / Dimension [z]	20 mm
Standard Number	62368-1
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	5 V
Voltage - Output 2	12 V

ECL15 Series

Part	Voltage - Isolation	Standard Number	Applications	Features	Current - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Power (Watts)	Mounting Type	Voltage - Output 2	Type	Current - Output 2	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Efficiency	For Use With/Related Products	Accessory Type	Current - Output 2 [custom]
XP POWER ECL15UD02-T	3000 V	62368-1	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	500 mA	0.78 in	31.7 mm	3.1 in	20 mm	78.7 mm	1.25 in	15 V	-20 °C	70 °C	2	15 W	Chassis Mount	-15 V	Open Frame	500 mA
XP POWER ECL15US24-S	4000 V	62368-1	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	630 mA	1.04 in		3.3 "		84 mm	1.36 "	24 V	-20 °C	70 °C	1	15 W	Chassis Mount		Enclosed		26.4 mm	34.5 mm	CE
XP POWER ECL15UD03-T	3000 V	62368-1	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	1.5 A	0.78 in	31.7 mm	3.1 in	20 mm	78.7 mm	1.25 in	5 V	-20 °C	70 °C	2	15 W	Chassis Mount	12 V	Open Frame	625 mA				81 %
XP POWER ECL15US48-S	4000 V	62368-1	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	320 mA	1.04 in		3.3 "		84 mm	1.36 "	48 V	-20 °C	70 °C	1	15 W	Chassis Mount		Enclosed		26.4 mm	34.5 mm	CE
XP POWER ECL15US24-T	4000 V	62368-1	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	630 mA	0.78 in	31.7 mm	3.1 in	20 mm	78.7 mm	1.25 in	24 V	-20 °C	70 °C	1	15 W	Chassis Mount		Open Frame				CE
XP POWER ECL15UD02-S	3000 V	62368-1	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	500 mA	1.04 in		3.3 "		84 mm	1.36 "	15 V	-20 °C	70 °C	2	15 W	Chassis Mount	-15 V	Enclosed	500 mA	26.4 mm	34.5 mm
XP POWER ECL15 DIN CLIP																									ECL Series Power Supplies	DIN Rail Adapter Kit
XP POWER ECL15US15-T	3000 V	62368-1	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	1 A	0.78 in	31.7 mm	3.1 in	20 mm	78.7 mm	1.25 in	15 V	-20 °C	70 °C	1	15 W	Chassis Mount		Open Frame					80 %
XP POWER ECL15UD01-S	3000 V	62368-1	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	650 mA	1.04 in		3.3 "		84 mm	1.36 "	12 V	-20 °C	70 °C	2	15 W	Chassis Mount	-12 V	Enclosed		26.4 mm	34.5 mm					650 mA
XP POWER ECL15US03-S	3000 V	62368-1	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	3 A	1.12 in		3.78 "		96 mm	1.57 "	3.3 V	-20 °C	70 °C	1	15 W	Chassis Mount		Open Frame		28.5 mm	40 mm		75 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 40.86
		5	$ 39.63
		10	$ 38.41
		25	$ 36.77
		100	$ 34.32
