SIT5156AECFD-28E0-16.369000

Active

SiTime

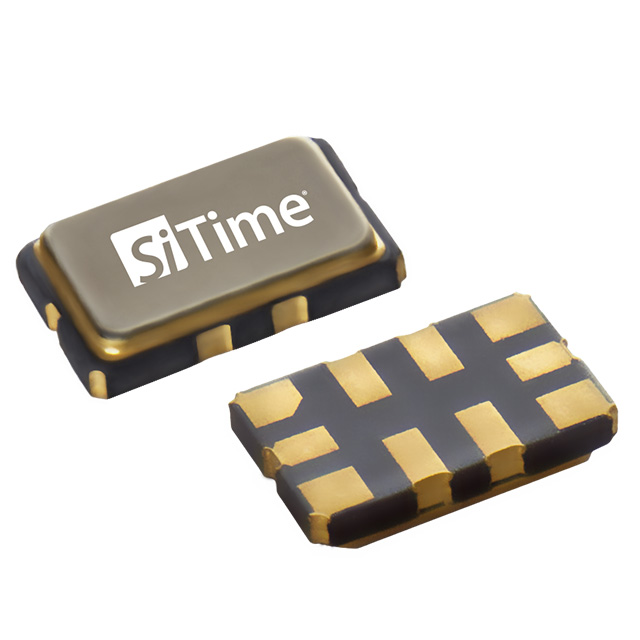

MEMS OSC TCXO 16.3690MHZ

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturing Notes for SiTime Products Datasheet

SIT5156AECFD-28E0-16.369000

Active

SiTime

MEMS OSC TCXO 16.3690MHZ

Deep-Dive with AI

DocumentsManufacturing Notes for SiTime Products Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SIT5156AECFD-28E0-16.369000

Base Resonator	MEMS
Current - Supply (Disable) (Max) [Max]	51 mA
Frequency	16.369 MHz
Frequency Stability	2.5 ppm
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	0.042 in
Height - Seated (Max) [Max] [z]	1.06 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Output	Clipped Sine Wave
Package / Case	10-SMD, No Lead
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	0.126 "
Size / Dimension [y]	3.2 mm
Type	TCXO
Voltage - Supply	2.8 V

SIT5156 Series

...

Part	Base Resonator	Type	Frequency	Output	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Absolute Pull Range (APR)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency Stability	Current - Supply (Max) [Max]	Voltage - Supply	Current - Supply (Disable) (Max) [Max]	Function
SiTime SIT5156AECFA-30VT-10.949297	MEMS	VCTCXO	10.949297 MHz	Clipped Sine Wave	0.197 in	0.126 "	3.2 mm	5 mm	10-SMD No Lead	6.25 ppm	-40 °C	105 ░C	Surface Mount	0.042 in	1.06 mm	1 ppm	57 mA	3 V
SiTime SIT5156AI-FK-33VT-16.369000	MEMS	VCTCXO	16.369 MHz	LVCMOS	0.197 in	0.126 "	3.2 mm	5 mm	10-SMD No Lead	6.25 ppm	-40 °C	85 °C	Surface Mount	0.042 in	1.06 mm	500 ppb	57 mA	3.3 V
SiTime SIT5156AICFA-28VT-16.367667	MEMS	VCTCXO	16.367667 MHz	Clipped Sine Wave	0.197 in	0.126 "	3.2 mm	5 mm	10-SMD No Lead	6.25 ppm	-40 °C	85 °C	Surface Mount	0.042 in	1.06 mm	1 ppm	57 mA	2.8 V
SiTime SIT5156AECFD-28E0-16.369000	MEMS	TCXO	16.369 MHz	Clipped Sine Wave	0.197 in	0.126 "	3.2 mm	5 mm	10-SMD No Lead		-40 °C	105 ░C	Surface Mount	0.042 in	1.06 mm	2.5 ppm		2.8 V	51 mA	Enable/Disable
SiTime SIT5156AICFD-33N0-50.000000	MEMS	TCXO	50 MHz	Clipped Sine Wave	0.197 in	0.126 "	3.2 mm	5 mm	10-SMD No Lead		-40 °C	85 °C	Surface Mount	0.042 in	1.06 mm	2.5 ppm		3.3 V
SiTime SIT5156AECFA-30VT-26.000000	MEMS	VCTCXO	26 MHz	Clipped Sine Wave	0.197 in	0.126 "	3.2 mm	5 mm	10-SMD No Lead	6.25 ppm	-40 °C	105 ░C	Surface Mount	0.042 in	1.06 mm	1 ppm	57 mA	3 V
SiTime SIT5156AI-FK-33VT-12.000000	MEMS	VCTCXO	12 MHz	LVCMOS	0.197 in	0.126 "	3.2 mm	5 mm	10-SMD No Lead	6.25 ppm	-40 °C	85 °C	Surface Mount	0.042 in	1.06 mm	500 ppb	57 mA	3.3 V
SiTime SIT5156AE-FD-25E0-38.400000	MEMS	TCXO	38.4 MHz	LVCMOS	0.197 in	0.126 "	3.2 mm	5 mm	10-SMD No Lead		-40 °C	105 ░C	Surface Mount	0.042 in	1.06 mm	2.5 ppm		2.5 V	51 mA	Enable/Disable
SiTime SIT5156AI-FA-33N0-19.440000	MEMS	TCXO	19.44 MHz	LVCMOS	0.197 in	0.126 "	3.2 mm	5 mm	10-SMD No Lead		-40 °C	85 °C	Surface Mount	0.042 in	1.06 mm	1 ppm		3.3 V
SiTime SIT5156AICFD-25VT-40.000000	MEMS	VCTCXO	40 MHz	Clipped Sine Wave	0.197 in	0.126 "	3.2 mm	5 mm	10-SMD No Lead	6.25 ppm	-40 °C	85 °C	Surface Mount	0.042 in	1.06 mm	2.5 ppm	57 mA	2.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	1	$ 48.91
		10	$ 46.38
		50	$ 45.54
		100	$ 43.85

Description

General part information

SIT5156 Series

16.369 MHz TCXO Clipped Sine Wave Oscillator 2.8V Enable/Disable 10-SMD, No Lead
