1049052

Active

SICK, Inc.

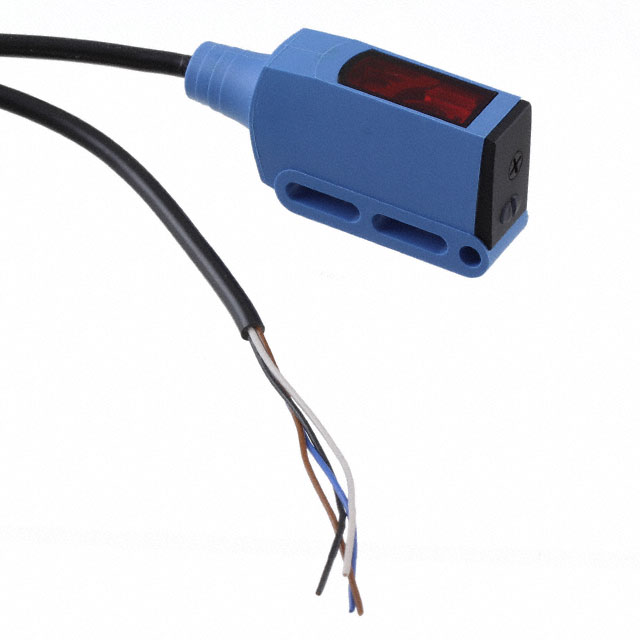

SENSOR 200MM NPN DO/LO CABLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1049052

Active

SICK, Inc.

SENSOR 200MM NPN DO/LO CABLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1049052

Adjustment Type	Adjustable, 5-Turn Potentiometer
Connection Method	Cable
Ingress Protection	IP69K, IP66, IP67
Light Source	Red LED
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Response Time	333 µs
Sensing Distance [Max]	7.874 in
Sensing Distance [Max]	200 mm
Sensing Distance [Min]	20 mm
Sensing Distance [Min]	0.787 "
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

WTB9 Series

Part	Output Configuration	Light Source	Operating Temperature [Min]	Operating Temperature [Max]	Adjustment Type	Connection Method	Cable Length	Cable Length	Sensing Method	Response Time	Ingress Protection	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Distance	Sensing Distance
SICK, Inc. 1052929	PNP	Infrared	-40 °C	60 °C	Adjustable 5-Turn Potentiometer	Cable with Connector	4.724 in	120 mm	Proximity	500 µs	IP66 IP67 IP69K	500 mm	0.787 "	20 mm	19.685 in	30 VDC	10 VDC
SICK, Inc. 1049044	PNP	RED (650nm)	-40 °C	60 °C	Adjustable 5-Turn Potentiometer	Cable	196.85 in	5 m	Proximity	333 µs		350 mm	0.787 "	20 mm	13.78 "	30 VDC	10 VDC
SICK, Inc. WTB9-3P1161	PNP	RED (650nm)	-40 °C	60 °C	Adjustable 5-Turn Potentiometer	Cable	78.74 in	2 m	Proximity	333 µs		350 mm	0.787 "	20 mm	13.78 "	30 VDC	10 VDC
SICK, Inc. 1049052		Red LED	-40 °C	60 °C	Adjustable 5-Turn Potentiometer	Cable				333 µs	IP66 IP67 IP69K	200 mm	0.787 "	20 mm	7.874 in	30 VDC	10 VDC
SICK, Inc. 1054306	PNP	RED (650nm)	-40 °C	60 °C	Adjustable 5-Turn Potentiometer	Cable with Connector	4.724 in	120 mm	Proximity	333 µs		350 mm	0.787 "	20 mm	13.78 "	30 VDC	10 VDC
SICK, Inc. 1070769	NPN	RED (650nm)	-40 °C	60 °C	Adjustable 5-Turn Potentiometer	Cable with Connector	4.724 in	120 mm	Proximity	333 µs		350 mm	0.787 "	20 mm	13.78 "	30 VDC	10 VDC
SICK, Inc. 1052931	NPN - Dark-ON/Light-ON	RED (650nm)	-10 °C	50 °C		Cable with Connector	4.724 in	120 mm	Proximity	200 µs	IP67 IP69K					30 VDC	10 VDC	0.394 in	10 mm
SICK, Inc. 1049049	PNP - Dark-ON/Light-ON - Selectable	Red LED	-40 °C	60 °C	Adjustable 5-Turn Potentiometer	4POS Connector M12				333 µs	IP66 IP67 IP69K	200 mm	0.787 "	20 mm	7.874 in	30 VDC	10 VDC
SICK, Inc. 1049045	PNP	Infrared	-40 °C	60 °C	Adjustable 5-Turn Potentiometer	Connector M8			Proximity	500 µs		500 mm	0.787 "	20 mm	19.685 in	30 VDC	10 VDC
SICK, Inc. 1058892	PNP	Infrared	-40 °C	60 °C	Adjustable 5-Turn Potentiometer	Cable with Connector	4.724 in	120 mm	Proximity	500 µs		500 mm	0.787 "	20 mm	19.685 in	30 VDC	10 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 160.12

Description

General part information

WTB9 Series

Optical Sensor 0.787" ~ 7.874" (20mm ~ 200mm) NPN - Dark-ON/Light-ON - Selectable
