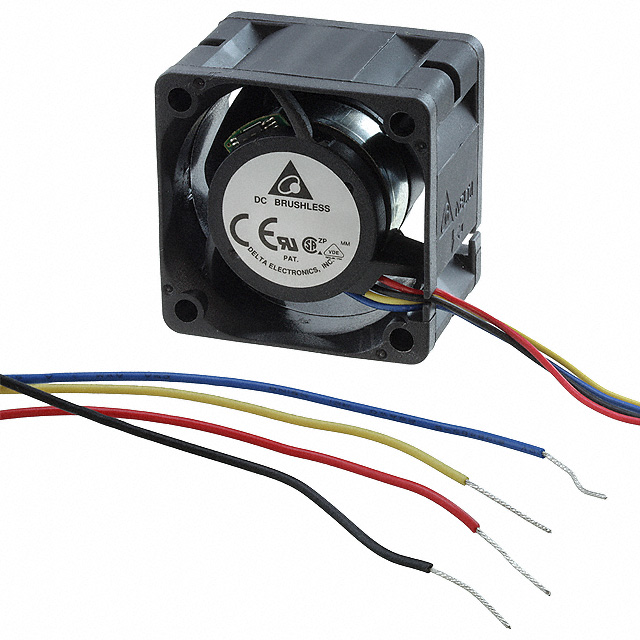

PFB0412EHN-TP06
ActiveDelta Electronics
FAN AXIAL 40X28MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
PFB0412EHN-TP06
ActiveDelta Electronics
FAN AXIAL 40X28MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PFB0412EHN-TP06 |
|---|---|
| Air Flow | 21.8 CFM |
| Air Flow | 0.61 mł/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.5 A |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 54.5 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 6 W |
| RPM | 16000 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Static Pressure | 356.5 Pa |
| Static Pressure | 1.431 in H2O |
| Termination | 4 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 10.8 VDC |
| Weight | 47.17 g |
| Weight | 0.104 lb |
| Width [y] | 28 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.00 | |
| 10 | $ 21.00 | |||
| 25 | $ 19.00 | |||
| 50 | $ 17.50 | |||
| 100 | $ 15.70 | |||
| 288 | $ 14.50 | |||
| 576 | $ 13.50 | |||
Description
General part information
PFB0412 Series
Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 21.8 CFM (0.610m³/min) 4 Wire Leads
Documents
Technical documentation and resources
