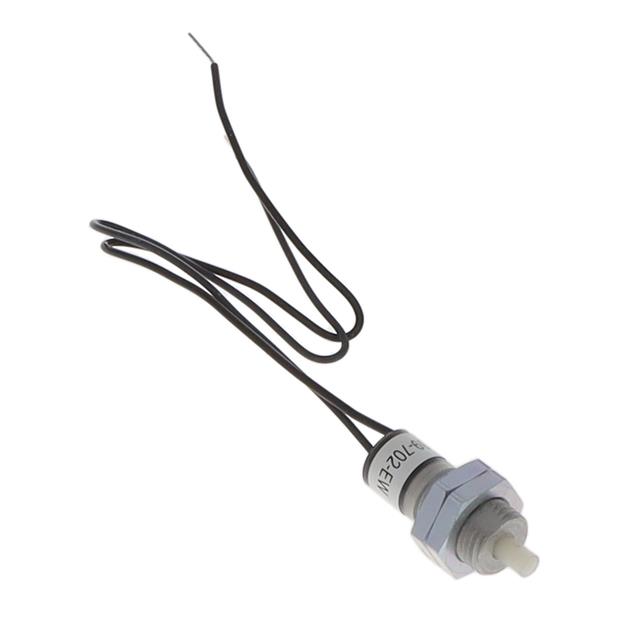

39-702-EW

Active

Grayhill Inc.

SWITCH PUSH SPST-NC 0.25A 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH SPST-NC 0.25A 115V

Technical Specifications

Parameters and characteristics for this part

Specification	39-702-EW

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPST-NC
Color - Actuator/Cap	White
Current Rating (Amps)	250 mA
Electrical Life	100000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	8.61 mm
Switch Function	On-Mom
Termination Style	Wire Leads
Type	Standard
Voltage Rating - AC	115 V

Part	Features	Electrical Life	Current Rating (Amps)	Color - Actuator/Cap	Mounting Type	Actuator Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Panel Cutout Dimensions [diameter]	Actuator Marking	Switch Function	Circuit	Type
Grayhill Inc. 39-702-EW	Epoxy Sealed Terminals	100000 Cycles	250 mA	White	Panel Mount Rear	Round Plunger	115 V	85 °C	-40 °C	Wire Leads	8.61 mm	No Marking	On-Mom	SPST-NC	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Rear
