7203-1571-002

Active

Radiall USA, Inc.

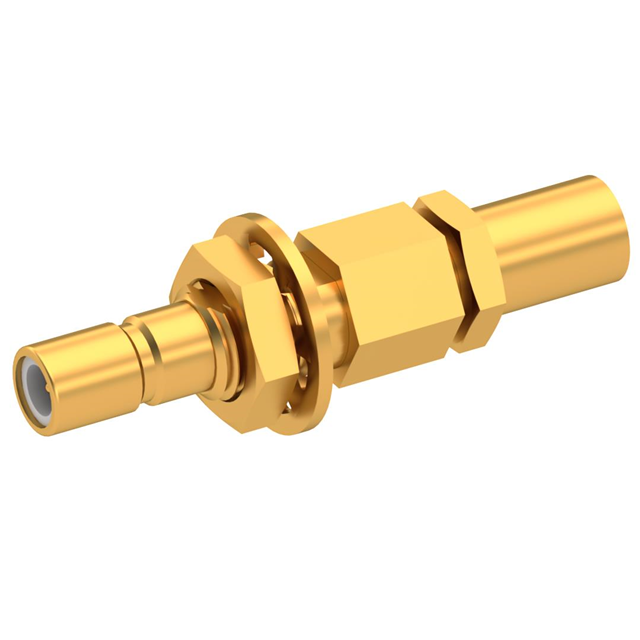

SSMB / STRAIGHT JACK MALE CRIMP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMB / STRAIGHT JACK MALE CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	7203-1571-002

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-196
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SSMB
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Housing Color	Gold
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Shield Termination	Crimp

Part	Dielectric Material	Connector Type	Fastening Type	Contact Termination	Cable Group	Body Material	Number of Ports	Mounting Feature	Connector Style	Center Contact Plating	Center Contact Material	Shield Termination	Housing Color	Body Finish
Radiall USA, Inc. 7203-1571-002	Polytetrafluoroethylene (PTFE)	Jack Male Pin	Snap-On	Crimp	RG-196	Beryllium Copper	1	Bulkhead - Front Side Nut	SSMB	Gold	Brass	Crimp	Gold	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SSMB Connector Jack, Male Pin Panel Mount Crimp

Technical documentation and resources

No documents available
