OSTOQ057151

Active

On Shore Technology Inc.

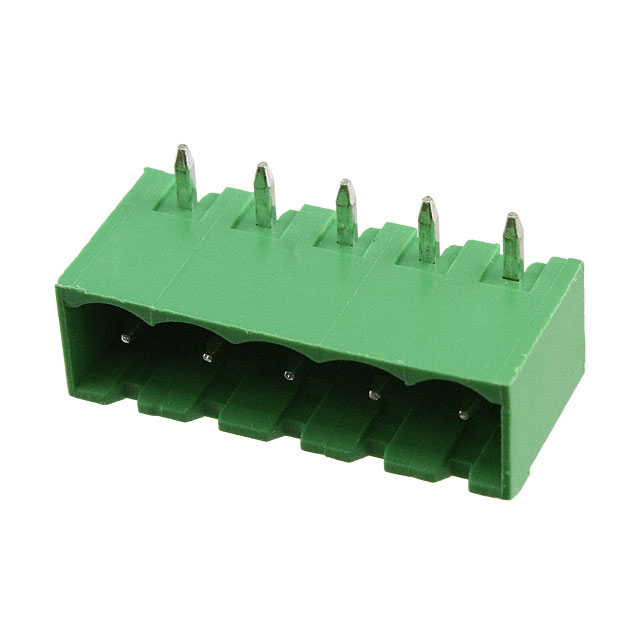

TERM BLOCK HDR 5POS 90DEG 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OSTOQ057151

Active

On Shore Technology Inc.

TERM BLOCK HDR 5POS 90DEG 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OSTOQ057151

Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.157 in
Contact Tail Length	4 mm
Header Orientation	90°, Right Angle
Housing Material	Thermoplastic
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Mounting Type	Solder
Number of Levels	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	5
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

OSTOQ05 Series

Part	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Contact Mating Finish	Type	Voltage - UL	Insulation Height	Insulation Height	Header Orientation	Contact Tail Length	Contact Tail Length	Contact Material	Housing Material	Mounting Type	Pitch [x]	Pitch [x]	Insulation Height [custom]	Insulation Height [custom]	Material Flammability Rating	Features
On Shore Technology Inc. OSTOQ053251	1	-30 ░C	105 ░C	5	Tin	Header Male Pins Shrouded (4 Side)	300 V	3.5 mm	0.138 in	90° Right Angle	3.5 mm	0.138 in	Brass	Thermoplastic	Solder	0.15 in	3.81 mm
On Shore Technology Inc. OSTOQ050550	1	-30 ░C	105 ░C	5	Tin	Header Male Pins Shrouded (4 Side)	300 V			Vertical	4 mm	0.157 in	Brass	Thermoplastic	Solder	0.3 in	7.62 mm	0.157 in	4 mm	UL94 V-0	Mating Flange
On Shore Technology Inc. OSTOQ057550	1	-30 ░C	105 ░C	5	Tin	Header Male Pins Shrouded (4 Side)	300 V			Vertical	4 mm	0.157 in	Brass	Thermoplastic	Solder	0.197 in	5 mm	0.157 in	4 mm	UL94 V-0	Mating Flange
On Shore Technology Inc. OSTOQ051251	1	-30 ░C	105 ░C	5	Tin	Header Male Pins Shrouded (4 Side)	300 V	3.5 mm	0.138 in	90° Right Angle	3.5 mm	0.138 in	Brass	Thermoplastic	Solder	0.138 in	3.5 mm
On Shore Technology Inc. OSTOQ057151	1	-40 °C	115 °C	5	Tin	Header Male Pins Shrouded (4 Side)	300 V			90° Right Angle	4 mm	0.157 in	Brass	Thermoplastic	Solder	0.197 in	5 mm	0.157 in	4 mm
On Shore Technology Inc. OSTOQ051551	1	-30 ░C	105 ░C	5	Tin	Header Male Pins Shrouded (4 Side)	300 V	3.5 mm	0.138 in	90° Right Angle	3.5 mm	0.138 in	Brass	Thermoplastic	Solder	0.138 in	3.5 mm			UL94 V-0	Mating Flange
On Shore Technology Inc. OSTOQ055481	1	-40 °C	115 °C	5	Tin	Header Male Pins Shrouded (4 Side)	300 V			90° Right Angle					Solder	0.2 in	5.08 mm	0.157 in	4 mm
On Shore Technology Inc. OSTOQ055401	1	-40 °C	115 °C	5	Tin	Header Male Pins Shrouded (4 Side)	300 V	3.5 mm	0.138 in	90° Right Angle	3.5 mm	0.138 in		Thermoplastic	Solder	0.2 in	5.08 mm
On Shore Technology Inc. OSTOQ050150	1	-30 ░C	105 ░C	5	Tin	Header Male Pins Shrouded (4 Side)	300 V			Vertical	4 mm	0.157 in	Brass	Thermoplastic	Solder	0.3 in	7.62 mm	0.157 in	4 mm
On Shore Technology Inc. OSTOQ051250	1	-30 ░C	105 ░C	5	Tin	Header Male Pins Shrouded (4 Side)	300 V	3.5 mm	0.138 in	Vertical	3.5 mm	0.138 in	Brass	Thermoplastic	Solder	0.138 in	3.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.00
		10	$ 0.62
		100	$ 0.47
		1000	$ 0.34
		5000	$ 0.27
		10000	$ 0.26

Description

General part information

OSTOQ05 Series

5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Solder
