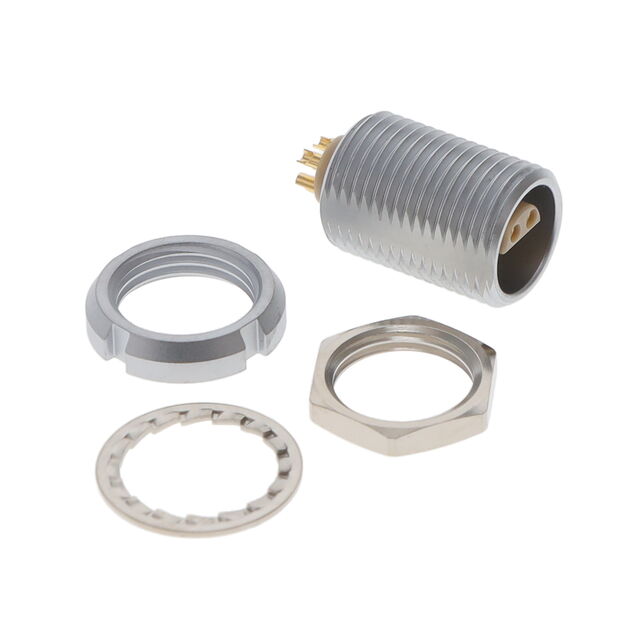

ECP.1S.304.CLL

Active

LEMO

CONN CIRC RCPT 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ECP.1S.304.CLL

Active

LEMO

CONN CIRC RCPT 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECP.1S.304.CLL

Color	Silver
Connector Type	Female Sockets, Male Pins, Receptacle
Contact Finish - Mating	Gold
Contact Material	Bronze, Brass
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Front and Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	304
Shielding	Shielded

ECP Series

Part	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Housing Color	Ingress Protection	Mating Cycles	Fastening Type	Impedance	Body Material	Connector Type	Number of Ports	Includes	Dielectric Material	Shield Termination	Mounting Feature	Body Finish	Voltage Rating	Contact Termination	Center Contact Material	Contact Material	Orientation	Contact Finish - Mating	Shielding	Material Flammability Rating	Termination	Color	Current Rating (Amps)	Shell Material	Mounting Type	Insert Material	Primary Material	Number of Positions	Shell Size - Insert	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
LEMO ECP.00.650.NLLY	NIM-CAMAC CD/N 549 Triaxial	-55 °C	260 ░C	Gold	Silver	IP50	5000	Push-Pull	50 Ohms	Brass	Female Socket Receptacle	1	1 Connector 1 Nut	Polyetheretherketone (PEEK)	Solder	Bulkhead - Rear Side Nut	Nickel	700 VDC	Solder Cup	Bronze
LEMO ECP.2S.308.CLN		-55 °C	250 °C			IP50		Push-Pull			Female Sockets Male Pins Receptacle					Front and Rear Side Nut					Brass Bronze	Keyed	Gold	Shielded	UL94 V-0	Solder	Silver	9 A	Brass	Panel Mount Through Hole	Polyetheretherketone (PEEK)	Metal	8	308	Chrome
LEMO ECP.0S.302.CLN		-55 °C	250 °C			IP50		Push-Pull			Female Sockets Male Pins Receptacle					Front and Rear Side Nut					Brass Bronze	Keyed	Gold	Shielded	UL94 V-0	Solder	Silver	10 A	Brass	Panel Mount Through Hole	Polyetheretherketone (PEEK)	Metal	2	302	Chrome
LEMO ECP.00.113.CTL		-55 °C	250 °C			IP50		Push-Pull			Receptacle Female Sockets					Front and Rear Side Nut					Bronze	P	Gold	Shielded	UL94 V-0		Silver	8 A	Brass		Polyetheretherketone (PEEK)	Metal	1	113	Chrome	59 Áin	1.5 Ám
LEMO ECP.1S.304.CLL		-55 °C	250 °C			IP50		Push-Pull			Female Sockets Male Pins Receptacle					Front and Rear Side Nut					Brass Bronze	Keyed	Gold	Shielded	UL94 V-0		Silver	10 A	Brass		Polyetheretherketone (PEEK)	Metal	4	304	Chrome
LEMO ECP.2S.304.CLV		-55 °C	250 °C			IP50		Push-Pull			Female Sockets Male Pins Receptacle					Front and Rear Side Nut					Brass Bronze	Keyed	Gold	Shielded	UL94 V-0	Solder	Silver	12 A	Brass	Panel Mount Right Angle Through Hole	Polyetheretherketone (PEEK)	Metal	4	304	Chrome
LEMO ECP.00.650.NLL	NIM-CAMAC CD/N 549 Triaxial	-55 °C	260 ░C	Gold	Silver	IP50	5000	Push-Pull	50 Ohms	Brass	Female Socket Receptacle	1	1 Connector 2 Nuts	Polyetheretherketone (PEEK)	Solder	Bulkhead - Rear Side Nut	Nickel	700 VDC	Solder Cup	Bronze
LEMO ECP.3S.310.CLN		-55 °C	250 °C			IP50		Push-Pull			Female Sockets Male Pins Receptacle					Front and Rear Side Nut					Brass Bronze	Keyed	Gold	Shielded	UL94 V-0	Solder	Silver	9 A	Brass	Panel Mount Through Hole	Polyetheretherketone (PEEK)	Metal	10	310	Chrome
LEMO ECP.1S.303.CLL		-55 °C	250 °C			IP50		Push-Pull			Female Sockets Male Pins Receptacle					Front and Rear Side Nut					Brass Bronze	Keyed	Gold	Shielded	UL94 V-0		Silver	10 A	Brass		Polyetheretherketone (PEEK)	Metal		303	Chrome
LEMO ECP.2S.302.CLN		-55 °C	250 °C			IP50		Push-Pull			Female Sockets Male Pins Receptacle					Front and Rear Side Nut					Brass Bronze	Keyed	Gold	Shielded	UL94 V-0	Solder	Silver	20 A	Brass	Panel Mount Through Hole	Polyetheretherketone (PEEK)	Metal	2	302	Chrome

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.59
		10	$ 30.29
		25	$ 28.98
		50	$ 28.04
		100	$ 27.11
		250	$ 25.61

Description

General part information

ECP Series

4 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup
