275002204 NA199

Active

ALPHA WIRE

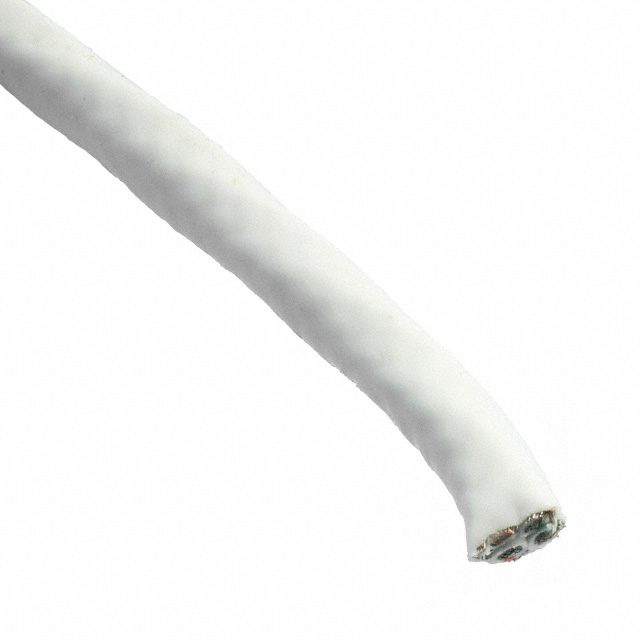

CABLE 4COND 22AWG NATURAL 3000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 22AWG NATURAL 3000'

Technical Specifications

Parameters and characteristics for this part

Specification	275002204 NA199

Cable Type	Multi-Conductor
Conductor Insulation	Ethylene Tetrafluoroethylene (ETFE)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG
Conductor Strand [custom]	19 Strands
Jacket (Insulation) Diameter [diameter]	4.27 mm
Jacket (Insulation) Diameter [diameter]	0.168 in
Jacket (Insulation) Material	Ethylene Tetrafluoroethylene (ETFE)
Jacket (Insulation) Thickness	0.0098 in
Jacket (Insulation) Thickness	0.25 mm
Jacket Color	Natural
Length	914.4 m
Length	3000 ft
Number of Conductors	4
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Braid
Voltage	600 V
Wire Gauge	22 AWG

Part	Wire Gauge	Conductor Strand [custom]	Conductor Strand	Number of Conductors	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Voltage	Shield Material	Length	Length	Cable Type	Shield Type	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material
ALPHA WIRE 275002204 NA199	22 AWG	19 Strands	34 AWG	4	Ethylene Tetrafluoroethylene (ETFE)	0.0098 in	0.25 mm	85 %	600 V	Copper Tinned	914.4 m	3000 ft	Multi-Conductor	Braid	Natural	-55 °C	150 °C	Copper Tinned	4.27 mm	0.168 in	Ethylene Tetrafluoroethylene (ETFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Conductor Multi-Conductor Cable Natural 22 AWG Braid 3000' (914.4m)
