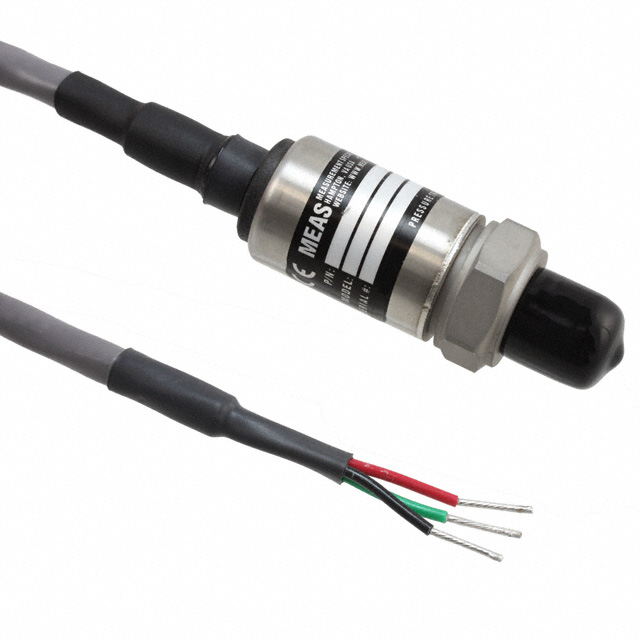

M5131-000005-250PG

Active

TE Connectivity Measurement Specialties

TRANSDUCER 250# PRES 0.5-4.5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M5131-000005-250PG

Active

TE Connectivity Measurement Specialties

TRANSDUCER 250# PRES 0.5-4.5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M5131-000005-250PG

Accuracy	1 %
Applications	Industrial Automation
Features	Temperature Compensated
Maximum Pressure [Max]	500 PSI
Maximum Pressure [Max]	3447.38 kPa
Operating Pressure	250 PSI
Operating Pressure	1723.69 kPa
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output [Max]	4.5 V
Output [Min]	0.5 V
Output Type	Analog Voltage
Package / Case	Cylinder
Port Size [custom]	NPT
Port Size [custom]	Male
Port Size [x]	0.25 "
Port Size [x]	6.35 mm
Port Style	Threaded
Pressure Type	Vented Gauge
Termination Style	Cable 2'
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

M5131 Series

Part	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Pressure Type	Operating Pressure	Operating Pressure	Termination Style	Output Type	Output [Min]	Output [Max]	Accuracy	Features	Package / Case	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Style	Maximum Pressure	Maximum Pressure
TE Connectivity Measurement Specialties M5131-000005-01KPG	2000 PSI	13789.51 kPa	125 °C	-40 °C	Vented Gauge	1000 PSI	6894.76 kPa	Cable 2'	Analog Voltage	0.5 V	4.5 V	1 %	Temperature Compensated	Cylinder	NPT	0.25 "	6.35 mm	Male	Industrial Automation	4.75 V	5.25 V	Threaded
TE Connectivity Measurement Specialties M5131-000005-250PG	500 PSI	3447.38 kPa	125 °C	-40 °C	Vented Gauge	250 PSI	1723.69 kPa	Cable 2'	Analog Voltage	0.5 V	4.5 V	1 %	Temperature Compensated	Cylinder	NPT	0.25 "	6.35 mm	Male	Industrial Automation	4.75 V	5.25 V	Threaded
TE Connectivity Measurement Specialties M5131-000005-500PG	1000 PSI	6894.76 kPa	125 °C	-40 °C	Vented Gauge	500 PSI	3447.38 kPa	Cable 2'	Analog Voltage	0.5 V	4.5 V	1 %	Temperature Compensated	Cylinder	NPT	0.25 "	6.35 mm	Male	Industrial Automation	4.75 V	5.25 V	Threaded
TE Connectivity Measurement Specialties M5131-000005-2K5PG	5000 PSI	34473.79 kPa	125 °C	-40 °C	Vented Gauge	2500 PSI	17236.89 kPa	Cable 2'	Analog Voltage	0.5 V	4.5 V	1 %	Temperature Compensated	Cylinder	NPT	0.25 "	6.35 mm	Male	Industrial Automation	4.75 V	5.25 V	Threaded
TE Connectivity Measurement Specialties M5131-000005-075PG	150 PSI	1034.21 kPa	125 °C	-40 °C	Vented Gauge	75 PSI	517.11 kPa	Cable 2'	Analog Voltage	0.5 V	4.5 V	1 %	Temperature Compensated	Cylinder	NPT	0.25 "	6.35 mm	Male	Industrial Automation	4.75 V	5.25 V	Threaded
TE Connectivity Measurement Specialties M5131-000005-05KPG			125 °C	-40 °C	Vented Gauge	5000 PSI	34473.79 kPa	Cable 2'	Analog Voltage	0.5 V	4.5 V	1 %	Temperature Compensated	Cylinder	NPT	0.25 "	6.35 mm	Male	Industrial Automation	4.75 V	5.25 V	Threaded	10000 PSI	68947.57 kPa
TE Connectivity Measurement Specialties M5131-000005-050PG	100 PSI	689.48 kPa	125 °C	-40 °C	Vented Gauge	50 PSI	344.74 kPa	Cable 2'	Analog Voltage	0.5 V	4.5 V	1 %	Temperature Compensated	Cylinder	NPT	0.25 "	6.35 mm	Male	Industrial Automation	4.75 V	5.25 V	Threaded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

M5131 Series

TRANSDUCER 250# PRES 0.5-4.5V

Documents

Technical documentation and resources
