ASE10X10X4NK
ActiveHoffman Enclosures, Inc.
JUNCTION BOX STL GRY 10"L X 10"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASE10X10X4NK |
|---|---|
| Area (L x W) | 100 in² |
| Area (L x W) | 645 cm² |
| Color | Gray |
| Container Type | Junction Box |
| Design | Cover Included |
| Height [z] | 4.016 in |
| Height [z] | 102 mm |
| Material | Metal, Steel |
| Ratings | NEMA 1, 50E, UL-50, IP30 |
| Size / Dimension [x] | 254 mm |
| Size / Dimension [x] | 10 in |
| Size / Dimension [y] | 10 in |
| Size / Dimension [y] | 254 mm |
| Weight | 2.9 kg |
| Weight | 6.3 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 54.30 | |
| 5 | $ 46.40 | |||
| 10 | $ 43.36 | |||
| 25 | $ 39.65 | |||
| 50 | $ 39.29 | |||
Description
General part information
ASE10X10 Series

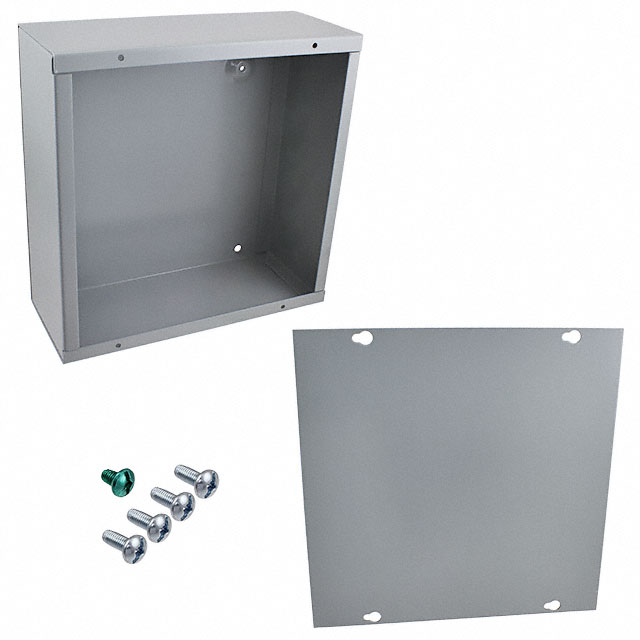

Junction Box Metal, Steel Gray Cover Included 10.000" L x 10.000" W (254.00mm x 254.00mm) X 4.016" (102.00mm)
