09332006222

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR CONTACT, HAN E HMC SERIES, SOCKET, 20 AWG, CRIMP, COPPER ALLOY

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR CONTACT, HAN E HMC SERIES, SOCKET, 20 AWG, CRIMP, COPPER ALLOY

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Type	Contact Termination	Wire Gauge
HARTING Technology Group 09332006217	Gold	22 AWG	26 AWG	Socket	Machined	Crimp
HARTING Technology Group 09332006221	Gold			Socket	Machined	Crimp	12 AWG
HARTING Technology Group 09332006222	Gold			Socket	Machined	Crimp	20 AWG
HARTING Technology Group 09332006143
HARTING Technology Group 09332006223	Gold			Socket	Machined	Crimp	13.5 AWG
HARTING Technology Group 09332006280	Gold			Socket	Machined	Crimp
HARTING Technology Group 09332006115	Gold			Pin	Machined	Crimp	18 AWG
HARTING Technology Group 09332006195
HARTING Technology Group 09332006118	Gold			Pin	Machined	Crimp	18 AWG
HARTING Technology Group 09332006180	Gold			Pin	Machined	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

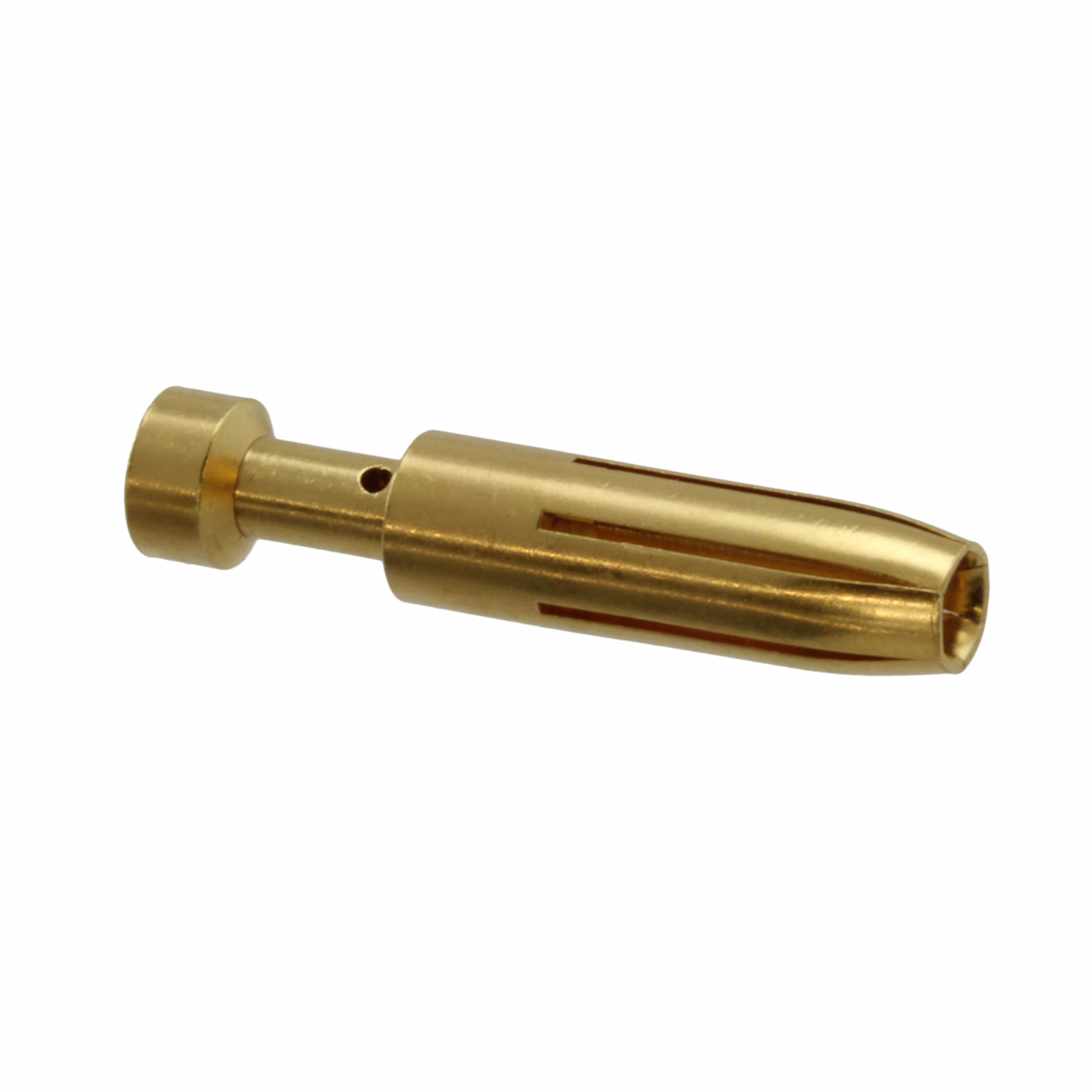

The 09332006222 from Harting is a Han E HMC (High Mating Cycles) female crimp contact. Suitable for Han® B HMC series hoods/housings.

Technical documentation and resources
