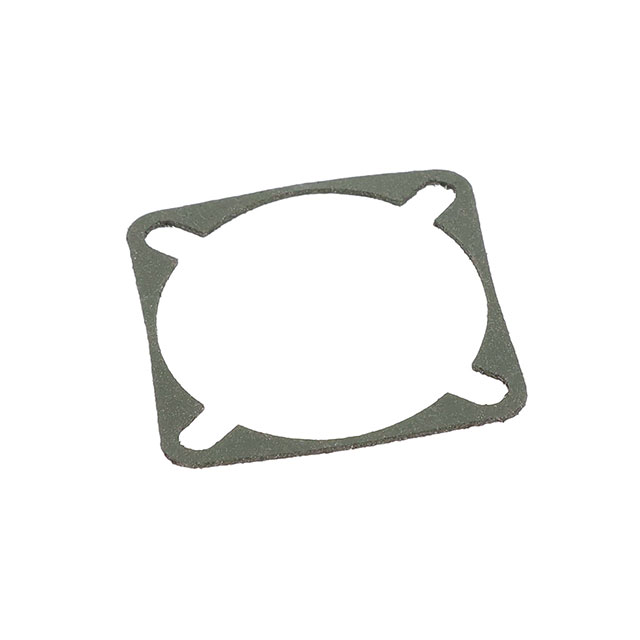

93-22059

Active

TE Kemtron

RFI GASKET FNG

Search across all available documentation for this part.

Active

TE Kemtron

RFI GASKET FNG

Technical Specifications

Parameters and characteristics for this part

Specification	93-22059

Height [z]	0.031 "
Height [z]	0.8 mm
Length	34.32 mm
Length	1.351 in
Material	Fluorosilicone Nickel Graphite
Shape	Square
Type	Gasket
Width [x]	34.32 mm
Width [x]	1.351 in

Part	Height [z]	Height [z]	Shape	Width [x]	Width [x]	Length	Length	Type	Material	Width	Width [y]	Length [x]	Length [x]	Width
TE Kemtron 93-22066	0.031 "	0.8 mm	Square	41.28 mm	1.625 in	1.625 in	41.28 mm	Gasket	Aluminum Silicone Silver
TE Kemtron 93-22013	0.031 "	0.8 mm	Square	26.92 mm	1.06 in	1.06 in	26.92 mm	Gasket	Fluorosilicone Nickel Graphite
TE Kemtron 93-22059	0.031 "	0.8 mm	Square	34.32 mm	1.351 in	1.351 in	34.32 mm	Gasket	Fluorosilicone Nickel Graphite
TE Kemtron 93-22062	0.031 "	0.8 mm	Square		1.5 in	1.5 "	38.1 mm	Gasket	Aluminum Silicone Silver	38.1 mm
TE Kemtron 93-22021	0.031 "	0.8 mm	Square			0.84 in	21.34 mm	Gasket	Aluminum Silicone Silver	21.34 mm	0.84 in
TE Kemtron 93-22064	0.031 "	0.8 mm	Square		1.5 in	1.5 "	38.1 mm	Gasket	Fluorosilicone Silver Aluminum	38.1 mm
TE Kemtron 93-22044	0.031 "	0.8 mm	Square	24.51 mm	0.965 in			Gasket	Fluorosilicone Silver Aluminum			0.965 in	24.51 mm
TE Kemtron 93-22026	0.031 "	0.8 mm	Square	34.32 mm	1.351 in	1.351 in	34.32 mm	Gasket	Aluminum Silicone Silver
TE Kemtron 93-22076	0.031 "	0.8 mm	Square			1.875 in	47.63 mm	Gasket	Fluorosilicone Silver Aluminum	47.63 mm				1.875 in
TE Kemtron 93-22071	0.031 "	0.8 mm	Square	44.45 mm	1.75 in	1.75 in	44.45 mm	Gasket	Fluorosilicone Nickel Graphite

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RFI GASKET FNG
