A17915-04

Active

Laird Technologies - Thermal Materials

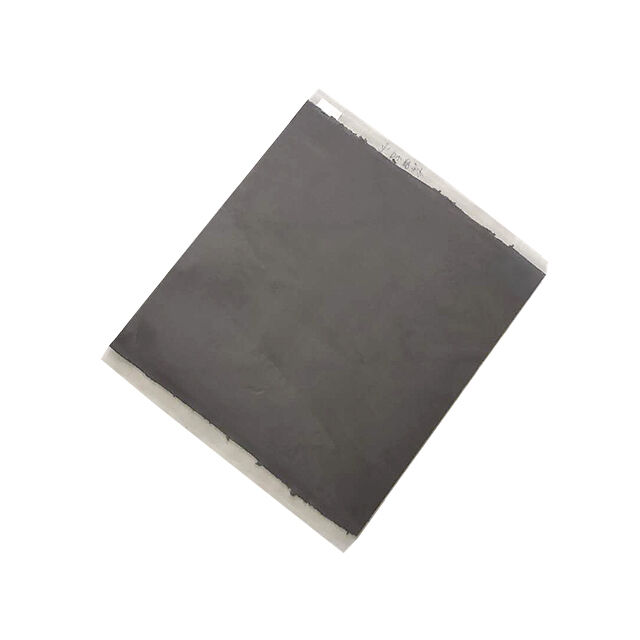

THERM PAD 457.2X457.2MM GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A17915-04

Active

Laird Technologies - Thermal Materials

THERM PAD 457.2X457.2MM GRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A17915-04

Adhesive	Tacky - Both Sides
Color	Gray
Material	Silicone, Ceramic Filled
Outline [x]	457.2 mm
Outline [y]	457.2 mm
Shape	Square
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Thermal Conductivity	2 W/m-K
Thickness	1.016 mm
Thickness	0.04 in
Type	Gap Filler Pad, Sheet

A17915 Series

Part	Thermal Conductivity	Thickness	Thickness	Color	Adhesive	Outline [y]	Outline [x]	Type	Shape	Shelf Life	Shelf Life Start	Material	Thickness [z]	Thickness [z]
Laird Technologies - Thermal Materials A17915-13	2 W/m-K	0.13 in	3.3 mm	Gray	Tacky - Both Sides	457.2 mm	457.2 mm	Gap Filler Pad Sheet	Square	24 Months	Date of Shipment	Ceramic Filled Silicone
Laird Technologies - Thermal Materials A17915-04	2 W/m-K	0.04 in	1.016 mm	Gray	Tacky - Both Sides	457.2 mm	457.2 mm	Gap Filler Pad Sheet	Square	24 Months	Date of Shipment	Ceramic Filled Silicone
Laird Technologies - Thermal Materials A17915-12	2 W/m-K	0.12 in	3.05 mm	Gray	Tacky - Both Sides	457.2 mm	457.2 mm	Gap Filler Pad Sheet	Square	24 Months	Date of Shipment	Ceramic Filled Silicone
Laird Technologies - Thermal Materials A17915-10	2 W/m-K	0.1 in	2.54 mm	Gray	Tacky - Both Sides	457.2 mm	457.2 mm	Gap Filler Pad Sheet	Square	24 Months	Date of Shipment	Ceramic Filled Silicone
Laird Technologies - Thermal Materials A17915-16	2 W/m-K	0.16 in	4.06 mm	Gray	Tacky - Both Sides	457.2 mm	457.2 mm	Gap Filler Pad Sheet	Square	24 Months	Date of Shipment	Ceramic Filled Silicone
Laird Technologies - Thermal Materials A17915-09	2 W/m-K	0.09 in	2.286 mm	Gray	Tacky - Both Sides	457.2 mm	457.2 mm	Gap Filler Pad Sheet	Square	24 Months	Date of Shipment	Ceramic Filled Silicone
Laird Technologies - Thermal Materials A17915-20	2 W/m-K	0.2 in	200 mils	Gray	Tacky - Both Sides	457.2 mm	457.2 mm	Gap Filler Pad Sheet	Square	24 Months	Date of Shipment	Ceramic Filled Silicone
Laird Technologies - Thermal Materials A17915-11	2 W/m-K			Gray	Tacky - Both Sides	457.2 mm	457.2 mm	Gap Filler Pad Sheet	Square	24 Months	Date of Shipment	Ceramic Filled Silicone	2.79 mm	0.11 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.71
		10	$ 28.95
		25	$ 27.57
		50	$ 26.58
		100	$ 25.61
		250	$ 24.39

Description

General part information

A17915 Series

Thermal Pad Gray 457.20mm x 457.20mm Square Tacky - Both Sides

Documents

Technical documentation and resources
