SY100E104JY
ObsoleteMicrochip Technology

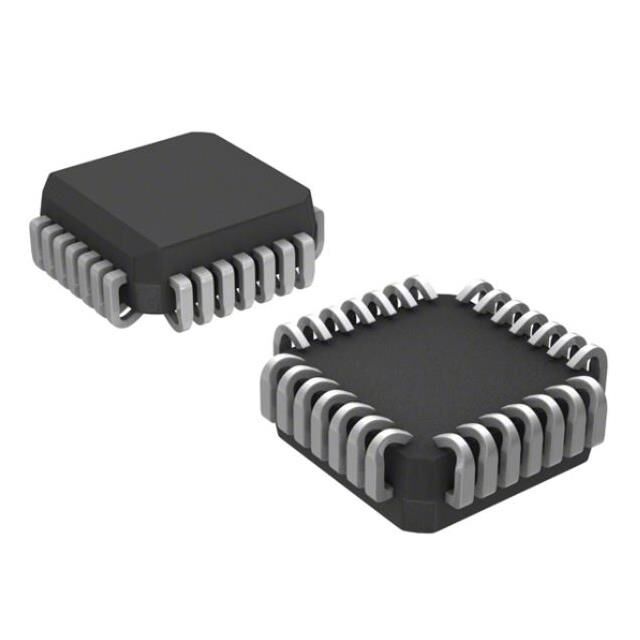

IC AND/NAND GATE 5-CIR 28PLCC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SY100E104JY
ObsoleteMicrochip Technology
IC AND/NAND GATE 5-CIR 28PLCC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SY100E104JY |
|---|---|
| Logic Type | AND/NAND Gate |
| Mounting Type | Surface Mount |
| Number of Circuits | 5 |
| Number of Inputs | 10 Input |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Differential |
| Package / Case | 28-LCC (J-Lead) |
| Schmitt Trigger Input | False |
| Supplier Device Package | 28-PLCC (11.48x11.48) |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
100E104 Series
AND/NAND Gate Configurable 5 Circuit 10 Input (2, 2, 2, 2, 2) Input 28-PLCC (11.48x11.48)
