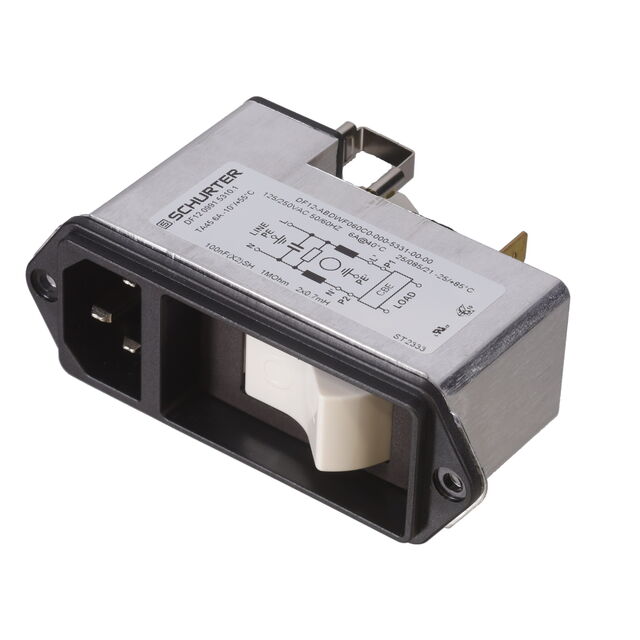

DF12.0991.5310.1

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	DF12.0991.5310.1

Accomodates a Fuse	False
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Circuit Breaker	6 A
Current Rating - Filter	6 A
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	30.8 mm
Panel Cutout Dimensions [y]	75.5 mm
Switch Features	Circuit Breaker, Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Switch Features	Termination	Termination	Termination	Material Flammability Rating	Ingress Protection	Mounting Type	Accomodates a Fuse	Current Rating - Appliance Inlet	Connector Type	Connector Style	Current Rating - Filter	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - Appliance Inlet	Approval Agency	Filter Type	Current Rating - Circuit Breaker
SCHURTER Inc. DF12.0991.5310.1	Circuit Breaker Switch On-Off	0.25 in	6.3 mm	Quick Connect	UL94 V-0	IP40	Flange Panel Mount		10 A	Receptacle Male Blades - Module	IEC 320-C14	6 A	75.5 mm	30.8 mm	250 VAC	cULus ENEC	Filtered (EMI RFI) - Commercial Medical	6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
