50016M20BSSW

Active

Jacob GmbH

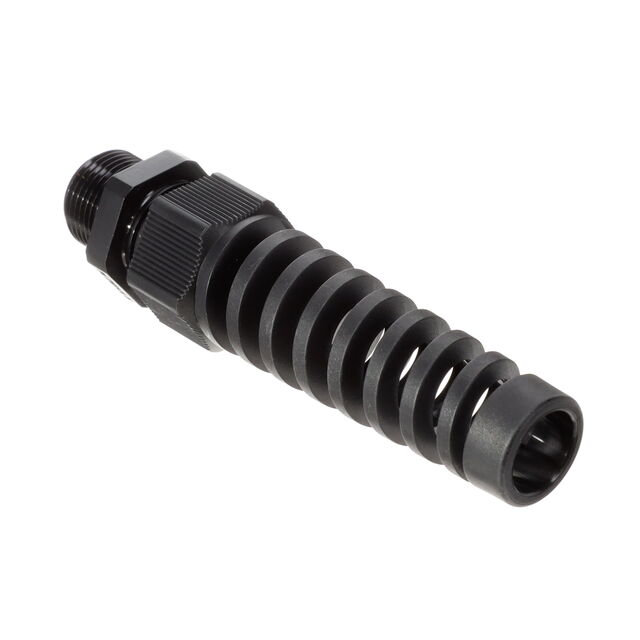

CABLE GLAND 10-14MM M20 POLYAMID

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 10-14MM M20 POLYAMID

Technical Specifications

Parameters and characteristics for this part

Specification	50016M20BSSW

Color	Black
Includes	Strain Relief
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	14 mm
Outside Cable Diameter (Max) [Max]	0.551 "
Outside Cable Diameter (Min) [Min] [diameter]	0.394 in
Outside Cable Diameter (Min) [Min] [diameter]	10 mm
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	M20x1.5
Type	Cable Gland

Part	Includes	Ingress Protection	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Color	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]
Jacob GmbH 50016/7035/15	Sealing Ring	IP68 - Dust Tight Waterproof	14 mm	0.551 "	Cable Gland	0.394 in	10 mm	0.591 in	15 mm	Gray	PG16	100 °C	-40 °C
Jacob GmbH 50016M20BSSW	Strain Relief	IP68 - Dust Tight Waterproof	14 mm	0.551 "	Cable Gland	0.394 in	10 mm	0.591 in	15 mm	Black	M20x1.5	100 °C	-40 °C
Jacob GmbH 50016PABS7035	Strain Relief	IP68 - Dust Tight Waterproof	14 mm	0.551 "	Cable Gland	0.394 in	10 mm	0.394 in	10 mm	Gray	PG16	100 °C	-40 °C
Jacob GmbH 50016M20BS7035	Strain Relief	IP68 - Dust Tight Waterproof	14 mm	0.551 "	Cable Gland	0.394 in	10 mm	0.591 in	15 mm	Gray	M20x1.5	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 M20x1.5 Black
