2960261
ActivePhoenix Contact

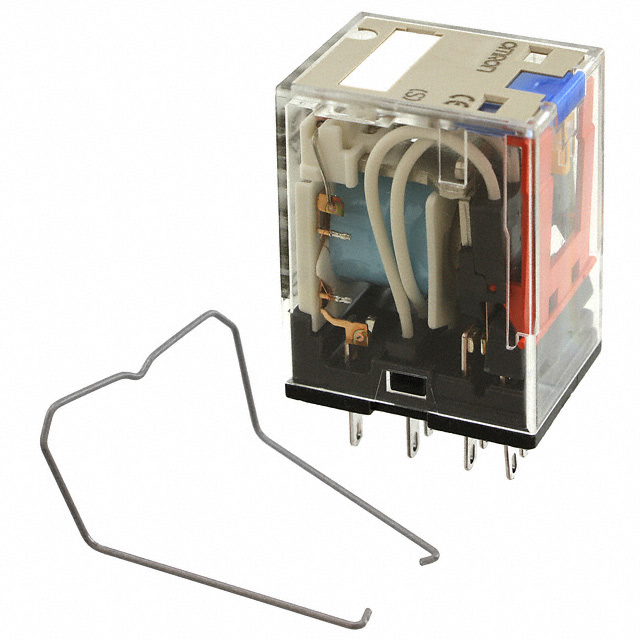

RELAY: INDUSTRIAL; 4PDT; UCOIL: 24VDC; 5A/250VAC; 5A/125VDC; SOCKET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2960261 |
|---|---|
| Coil Current | 38 mA |
| Coil Resistance | 630 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 5 A |
| Mounting Type | Socketable |
| Operate Time | 13 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -55 °C |
| Relay Type | General Purpose |
| Release Time | 8 ms |
| Switching Voltage | 250 VAC, 250 VDC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 78.11 | |
| 10 | $ 71.86 | |||
| 50 | $ 66.39 | |||
| 100 | $ 63.27 | |||
Description
General part information
29602 Series
General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable
