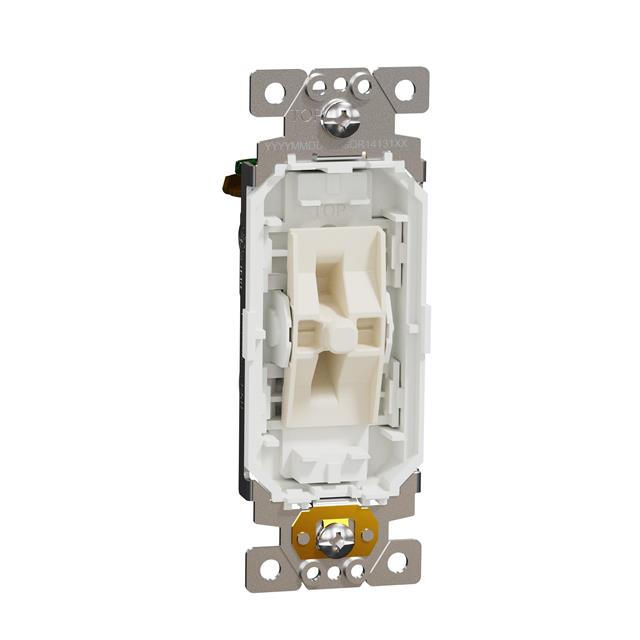

SQR14131XX

Active

SQUARE D BY SCHNEIDER ELECTRIC

SWITCH TOGGLE SP3T 15A 120V

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

SWITCH TOGGLE SP3T 15A 120V

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Termination Style	Circuit
SQUARE D BY SCHNEIDER ELECTRIC SQR14141XX	15 A	-5 °C	45 °C	120 V	Screw Terminal
SQUARE D BY SCHNEIDER ELECTRIC SQR14103WH	15 A	-5 °C	45 °C	120 V	Screw Terminal	SPST
SQUARE D BY SCHNEIDER ELECTRIC SQR14131XX	15 A	-5 °C	45 °C	120 V	Screw Terminal	SP3T
SQUARE D BY SCHNEIDER ELECTRIC SQR14100XX	15 A	-5 °C	45 °C	120 V	Screw Terminal	SPST
SQUARE D BY SCHNEIDER ELECTRIC SQR14103XX	15 A	-5 °C	45 °C	120 V	Screw Terminal	SPST
SQUARE D BY SCHNEIDER ELECTRIC SQR14130XX	15 A	-5 °C	45 °C	120 V	Screw Terminal	SP3T

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4.86

General part information

Toggle Switch SP3T Panel Mount

Technical documentation and resources
