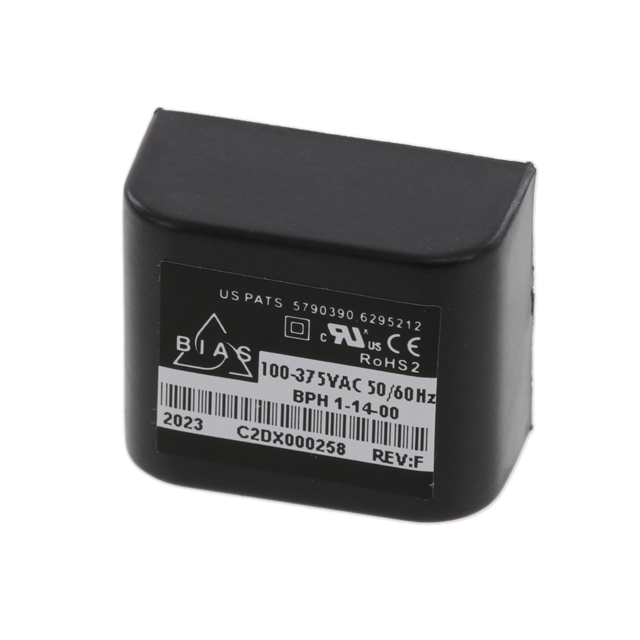

BPH1-14-00
ActiveCita Technologies, LLC.
AC/DC CONVERTER 14V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BPH1-14-00
ActiveCita Technologies, LLC.
AC/DC CONVERTER 14V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BPH1-14-00 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus |
| Efficiency | 70 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 7-DIP Module |
| Size / Dimension [x] | 27.9 mm |
| Size / Dimension [x] | 1.1 " |
| Size / Dimension [y] | 0.92 " |
| Size / Dimension [y] | 23.2 mm |
| Size / Dimension [z] | 0.55 in |
| Size / Dimension [z] | 14 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 375 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output 1 | 14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 9.30 | |
| 5 | $ 9.16 | |||
| 20 | $ 9.03 | |||
| 40 | $ 8.23 | |||
Description
General part information
BPH1-14 Series
Enclosed AC DC Converters 1 Output 14V 100 ~ 375 VAC Input
