PES1-S12-S15-M

Obsolete

CUI Inc.

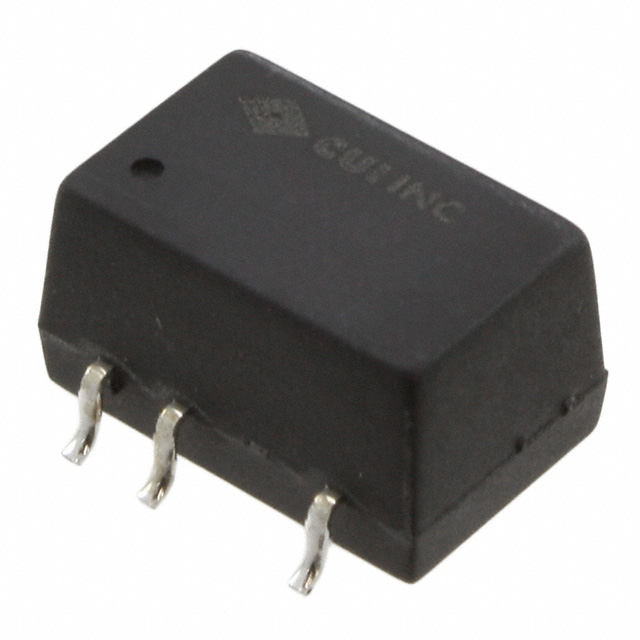

DC DC CONVERTER 15V 1W

Deep-Dive with AI

Search across all available documentation for this part.

PES1-S12-S15-M

Obsolete

CUI Inc.

DC DC CONVERTER 15V 1W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PES1-S12-S15-M

Applications	ITE (Commercial)
Approval Agency	UL, EN
Current - Output (Max) [Max]	67 mA
Efficiency	80 %
Features	SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	8-SMD Module, 5 Leads
Size / Dimension [x]	0.5 in
Size / Dimension [x]	12.8 mm
Size / Dimension [y]	0.32 in
Size / Dimension [y]	8.2 mm
Size / Dimension [z]	7.3 mm
Size / Dimension [z]	0.29 "
Standard Number	55024, 60950-1, 55032 Class A
Type	Isolated Module
Voltage - Input (Max) [Max]	13.2 V
Voltage - Input (Min) [Min]	10.8 V
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

PES1-S12 Series

Part	Applications	Package / Case	Features	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Approval Agency	Current - Output (Max) [Max]	Mounting Type	Number of Outputs	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Type	Current - Output (Max) [Min]	Voltage - Output 2	Current - Output (Max) [Max]
CUI Inc. PES1-S12-S5-M-TR	ITE (Commercial)	8-SMD Module 5 Leads	SCP	5 V	13.2 V	10.8 V	0.5 in	12.8 mm	7.3 mm	0.32 in	8.2 mm	0.29 "	80 %	EN UL	200 mA	Surface Mount	1	3000 V	-40 °C	105 C	55024 55032 Class A 60950-1	Isolated Module
CUI Inc. PES1-S12-S15-M	ITE (Commercial)	8-SMD Module 5 Leads	SCP	15 V	13.2 V	10.8 V	0.5 in	12.8 mm	7.3 mm	0.32 in	8.2 mm	0.29 "	80 %	EN UL	67 mA	Surface Mount	1	3000 V	-40 °C	105 C	55024 55032 Class A 60950-1	Isolated Module
CUI Inc. PES1-S12-D24-M-TR	ITE (Commercial)	8-SMD Module 6 Leads	SCP	24 V	13.2 V	10.8 V	0.6 in	15.2 mm	7.3 mm	0.33 in	8.3 mm	0.29 "	81 %	CB Scheme EN IEC UL	21 mA	Surface Mount	2	3000 V	-40 °C	105 C	55024 55032 Class A 60950-1	Isolated Module	21 mA	-24 V
CUI Inc. PES1-S12-S3-M-TR	ITE (Commercial)	8-SMD Module 5 Leads	SCP	3.3 V	13.2 V	10.8 V	0.5 in	12.7 mm	7.3 mm	0.33 in	8.3 mm	0.29 "		EN UL	303 mA	Surface Mount	1	3000 V	-40 °C	105 C	55024 55032 Class A 60950-1	Isolated Module
CUI Inc. PES1-S12-S12-M	ITE (Commercial)	8-SMD Module 5 Leads	SCP	12 V	13.2 V	10.8 V	0.5 in	12.8 mm	7.3 mm	0.32 in	8.2 mm	0.29 "	80 %	EN UL	84 mA	Surface Mount	1	3000 V	-40 °C	105 C	55024 55032 Class A 60950-1	Isolated Module
CUI Inc. PES1-S12-D12-M-TR	ITE (Commercial)	8-SMD Module 6 Leads	SCP	12 V	13.2 V	10.8 V	0.5 in	12.7 mm	7.3 mm	0.33 in	8.3 mm	0.29 "	81 %	CB Scheme EN IEC UL	42 mA	Surface Mount	2	3000 V	-40 °C	105 C	55024 55032 Class A 60950-1	Isolated Module		-12 V	42 mA
CUI Inc. PES1-S12-S12-M-TR	ITE (Commercial)	8-SMD Module 5 Leads	SCP	12 V	13.2 V	10.8 V	0.5 in	12.8 mm	7.3 mm	0.32 in	8.2 mm	0.29 "	80 %	EN UL	84 mA	Surface Mount	1	3000 V	-40 °C	105 C	55024 55032 Class A 60950-1	Isolated Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PES1-S12 Series

Isolated Module DC DC Converter 1 Output 15V 67mA 10.8V - 13.2V Input
