09140064701

Active

HARTING Technology Group

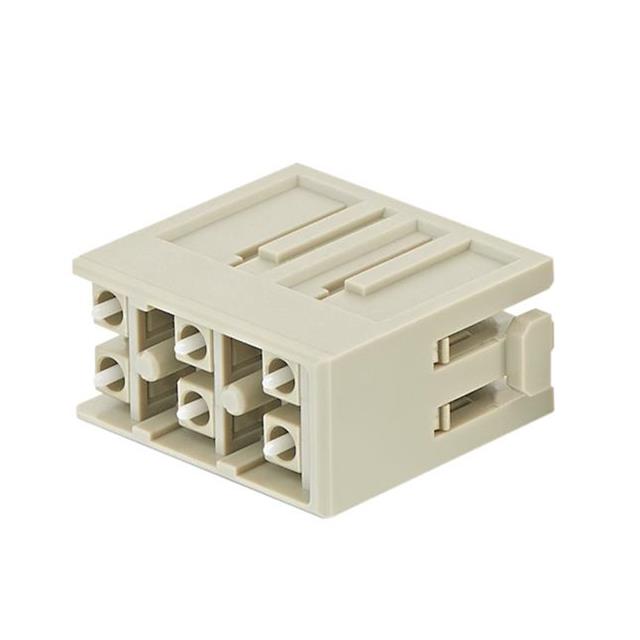

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, INSERT, 6 CONTACTS, PLUG

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, INSERT, 6 CONTACTS, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	09140064701

Color	Gray
Connector Type	Module, Fiber Optic - LC
Contact Type	LC, Fiber Optic
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp

Part	Termination Style	Material Flammability Rating	Connector Type	Color	Housing Material	Contact Type	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions
HARTING Technology Group 09140064701	Crimp	UL94 V-0	Module Fiber Optic - LC	Gray	Polycarbonate (PC)	Fiber Optic LC	Male	85 °C	-40 °C	6
HARTING Technology Group 09140064711	Crimp	UL94 V-0	Module Fiber Optic - LC	Gray	Polycarbonate (PC)	Fiber Optic LC	Female	85 °C	-40 °C	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Module, Fiber Optic - LC Gray 6 Position Crimp
