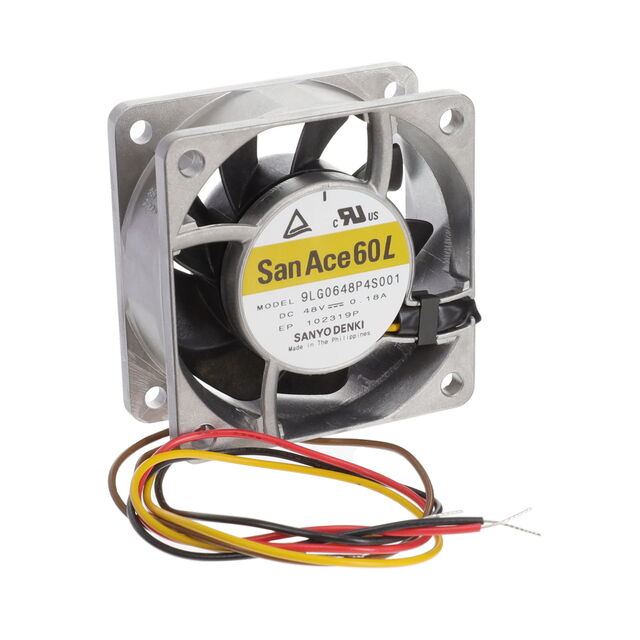

9LG0648P4S001
ActiveSanyo Denki America Inc.
FAN AXIAL 60X25MM 48VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
9LG0648P4S001
ActiveSanyo Denki America Inc.
FAN AXIAL 60X25MM 48VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9LG0648P4S001 |
|---|---|
| Air Flow | 49.4 CFM |
| Air Flow | 1.38 m³/min |
| Approval Agency | CSA, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.18 A |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Lifetime @ Temp. | 180000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 53 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 8.64 W |
| RPM | 11000 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 1.224 in H2O |
| Static Pressure | 304.9 Pa |
| Termination | 4 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 72 VDC |
| Voltage Range [Min] | 36 VDC |
| Weight | 0.222 lb |
| Weight | 100.7 g |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 70.63 | |
| 10 | $ 63.90 | |||
| 25 | $ 59.70 | |||
| 80 | $ 58.86 | |||
| 160 | $ 54.23 | |||
Description
General part information
9LG0648 Series
Fan Tubeaxial 48VDC Square - 60mm L x 60mm H Ball 49.4 CFM (1.38mł/min) 4 Wire Leads
