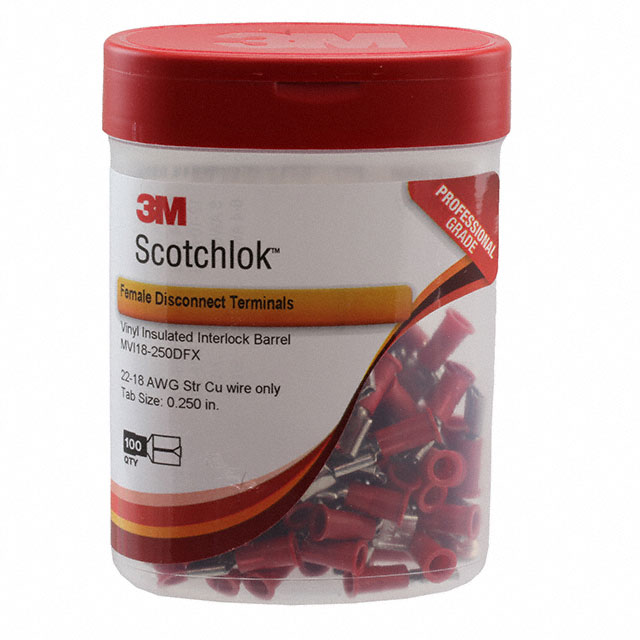

MVI18-250DFX-BOTTLE

Active

3M (TC)

CONN QC RCPT 18-22AWG 0.25 100PC

Search across all available documentation for this part.

Active

3M (TC)

CONN QC RCPT 18-22AWG 0.25 100PC

Technical Specifications

Parameters and characteristics for this part

Specification	MVI18-250DFX-BOTTLE

Color	Red
Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Mating End Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Length - Overall	21.08 mm
Length - Overall [x]	0.83 in
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Gender	Contact Finish	Contact Material	Color	Mounting Type	Tab Thickness	Tab Thickness	Termination	Insulation Diameter	Insulation Diameter [diameter]	Insulation	Length - Overall	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Tab Width	Tab Width	Terminal Type
3M (TC) MVI18-250DFK	Female	Tin	Brass	Red	Free Hanging (In-Line)	0.032 in	0.81 mm	Crimp	3.68 mm	0.145 "	Non-Mating End Insulated	21.08 mm	0.83 in	22 AWG	17.5 AWG	6.35 mm	0.25 in	Standard
3M (TC) MVI18-250DFX-BOTTLE	Female	Tin	Brass	Red	Free Hanging (In-Line)	0.032 in	0.81 mm	Crimp	3.68 mm	0.145 "	Non-Mating End Insulated	21.08 mm	0.83 in	22 AWG	17.5 AWG	6.35 mm	0.25 in	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 57.99

General part information

0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Non-Mating End Insulated

Technical documentation and resources

No documents available
