F6V0.38TB250

Active

Techflex

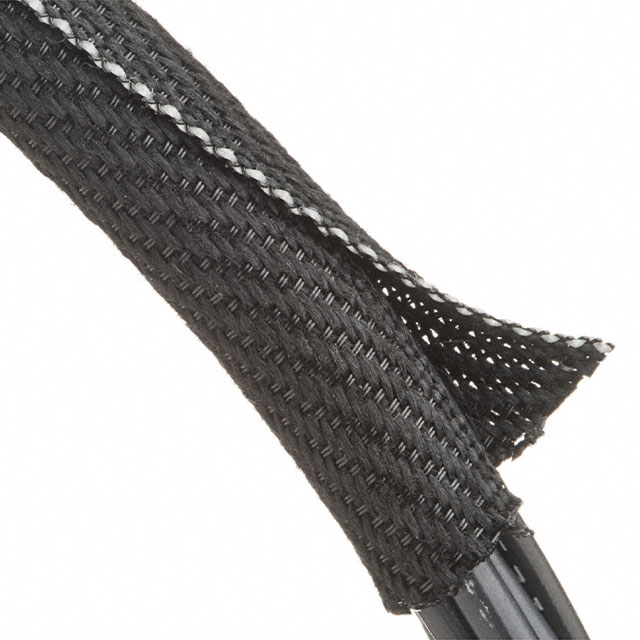

SELF WRAP 3/8" X 250' BLACK

Search across all available documentation for this part.

Active

Techflex

SELF WRAP 3/8" X 250' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	F6V0.38TB250

Abrasion Protection	Abrasion Resistant
Color	Black
Diameter - Inside, Non-Expanded [diameter]	0.375 in
Diameter - Inside, Non-Expanded [diameter]	9.53 mm
Features	Clean Cut, White Tracer
Heat Protection	Flame Retardant
Length [x]	76.2 m
Length [x]	250 ft
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Self Wrap
Type Attributes	Split Flexible Tube
Wall Thickness	0.69 mm
Wall Thickness	0.027 in

Part	Material	Operating Temperature [Max]	Operating Temperature [Min]	Type	Type Attributes	Wall Thickness	Wall Thickness	Features	Color	Material Flammability Rating	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Heat Protection	Length [x]	Length [x]	Abrasion Protection	Length
Techflex F6V0.38TB250	Polyethylene Terephthalate (PET) Halogen Free	125 °C	-70 °C	Self Wrap	Split Flexible Tube	0.69 mm	0.027 in	Clean Cut White Tracer	Black	UL VW-1	0.375 in	9.53 mm	Flame Retardant	76.2 m	250 ft	Abrasion Resistant
Techflex F6V0.75TB50	Polyethylene Terephthalate (PET) Halogen Free	125 °C	-70 °C	Self Wrap	Split Flexible Tube	0.69 mm	0.027 in	Clean Cut White Tracer	Black	UL VW-1	0.75 in	19.05 mm	Flame Retardant		50 ft	Abrasion Resistant	15.24 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 175.32

General part information

Self Wrap X 250' (76.20m) Black
