LQP03TG3N6C02D

Active

Murata Power Solutions Inc.

FIXED IND 3.6NH 350MA 350MOHM SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LPQ03TN,G Series Presentation

LQP03TG3N6C02D

Active

Murata Power Solutions Inc.

FIXED IND 3.6NH 350MA 350MOHM SM

Deep-Dive with AI

DocumentsDatasheet LPQ03TN,G Series Presentation

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LQP03TG3N6C02D

Current Rating (Amps)	350 mA
DC Resistance (DCR)	350 mOhm
Frequency - Self Resonant	8 GHz
Height - Seated (Max) [Max]	0.33 mm
Height - Seated (Max) [Max] [z]	0.013 "
Inductance	3.6 nH
Inductance Frequency - Test	500 MHz
Material - Core	Non-Magnetic
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0603 Metric
Package / Case	0201
Q @ Freq	13, 500 MHz
Shielding	Unshielded
Size / Dimension [x]	0.6 mm
Size / Dimension [x]	0.024 "
Size / Dimension [y]	0.3 mm
Size / Dimension [y]	0.012 "
Supplier Device Package	0603 Metric
Supplier Device Package	0201
Tolerance	0.2 nH
Type	Thick Film

LQP03TG Series

Part	Frequency - Self Resonant	Tolerance	Material - Core	Shielding	Supplier Device Package	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Inductance	Type	Inductance Frequency - Test	Q @ Freq	DC Resistance (DCR) [Max]	DC Resistance (DCR)
Murata Power Solutions Inc. LQP03TG1N1B02D	17 GHz	0.1 nH	Non-Magnetic	Unshielded	0603 Metric	0201	0.013 "	0.33 mm	600 mA	-55 °C	125 °C	0603 Metric	0201	Surface Mount	0.3 mm	0.6 mm	0.024 "	0.012 "	1.1 nH	Thick Film	500 MHz	12 500 MHz	150 mOhm
Murata Power Solutions Inc. LQP03TG1N7B02D	12.5 GHz	0.1 nH	Non-Magnetic	Unshielded	0603 Metric	0201	0.013 "	0.33 mm	0.5 A	-55 °C	125 °C	0603 Metric	0201	Surface Mount	0.3 mm	0.6 mm	0.024 "	0.012 "	1.7 nH	Thick Film	500 MHz	13 500 MHz		200 mOhm
Murata Power Solutions Inc. LQP03TG39NJ02D	1.5 GHz	5 %	Non-Magnetic	Unshielded	0603 Metric	0201	0.013 "	0.33 mm	110 mA	-55 °C	125 °C	0603 Metric	0201	Surface Mount	0.3 mm	0.6 mm	0.024 "	0.012 "	39 nH	Thick Film	300 MHz	7 300 MHz	4.6 Ohm
Murata Power Solutions Inc. LQP03TG2N8B02D	9.5 GHz	0.1 nH	Non-Magnetic	Unshielded	0603 Metric	0201	0.013 "	0.33 mm	450 mA	-55 °C	125 °C	0603 Metric	0201	Surface Mount	0.3 mm	0.6 mm	0.024 "	0.012 "	2.8 nH	Thick Film	500 MHz	13 500 MHz	250 mOhm
Murata Power Solutions Inc. LQP03TG0N2C02D	20 GHz	0.2 nH	Non-Magnetic	Unshielded	0603 Metric	0201	0.013 "	0.33 mm	0.85 A	-55 °C	125 °C	0603 Metric	0201	Surface Mount	0.3 mm	0.6 mm	0.024 "	0.012 "	0.2 nH	Thick Film	500 MHz		80 mOhm
Murata Power Solutions Inc. LQP03TG1N3B02D	15 GHz	0.1 nH	Non-Magnetic	Unshielded	0603 Metric	0201	0.013 "	0.33 mm	600 mA	-55 °C	125 °C	0603 Metric	0201	Surface Mount	0.3 mm	0.6 mm	0.024 "	0.012 "	1.3 nH	Thick Film	500 MHz	13 500 MHz	150 mOhm
Murata Power Solutions Inc. LQP03TG13NH02D	3.4 GHz	3 %	Non-Magnetic	Unshielded	0603 Metric	0201	0.013 "	0.33 mm	0.17 A	-55 °C	125 °C	0603 Metric	0201	Surface Mount	0.3 mm	0.6 mm	0.024 "	0.012 "	13 nH	Thick Film	500 MHz	11 500 MHz		1.82 Ohm
Murata Power Solutions Inc. LQP03TG1N0C02D	17 GHz	0.2 nH	Non-Magnetic	Unshielded	0603 Metric	0201	0.013 "	0.33 mm	600 mA	-55 °C	125 °C	0603 Metric	0201	Surface Mount	0.3 mm	0.6 mm	0.024 "	0.012 "	1 nH	Thick Film	500 MHz	12 500 MHz	150 mOhm
Murata Power Solutions Inc. LQP03TG3N6C02D	8 GHz	0.2 nH	Non-Magnetic	Unshielded	0603 Metric	0201	0.013 "	0.33 mm	350 mA	-55 °C	125 °C	0603 Metric	0201	Surface Mount	0.3 mm	0.6 mm	0.024 "	0.012 "	3.6 nH	Thick Film	500 MHz	13 500 MHz		350 mOhm
Murata Power Solutions Inc. LQP03TG0N4C02D	18 GHz	0.2 nH	Non-Magnetic	Unshielded	0603 Metric	0201	0.013 "	0.33 mm	0.85 A	-55 °C	125 °C	0603 Metric	0201	Surface Mount	0.3 mm	0.6 mm	0.024 "	0.012 "	0.4 nH	Thick Film	500 MHz		80 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.10
	Digi-Reel®	1	$ 0.10
	Tape & Reel (TR)	15000	$ 0.01

Description

General part information

LQP03TG Series

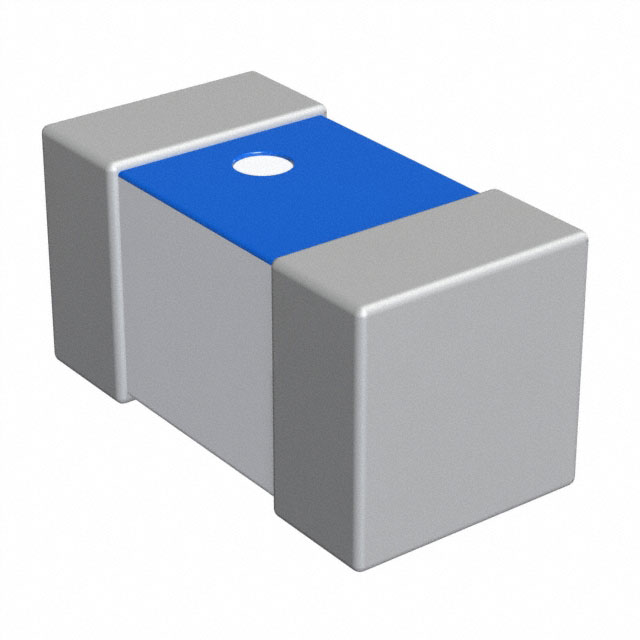

3.6 nH Unshielded Thick Film Inductor 350 mA 350mOhm Max 0201 (0603 Metric)

Documents

Technical documentation and resources

Datasheet

LPQ03TN,G Series Presentation

Datasheet
