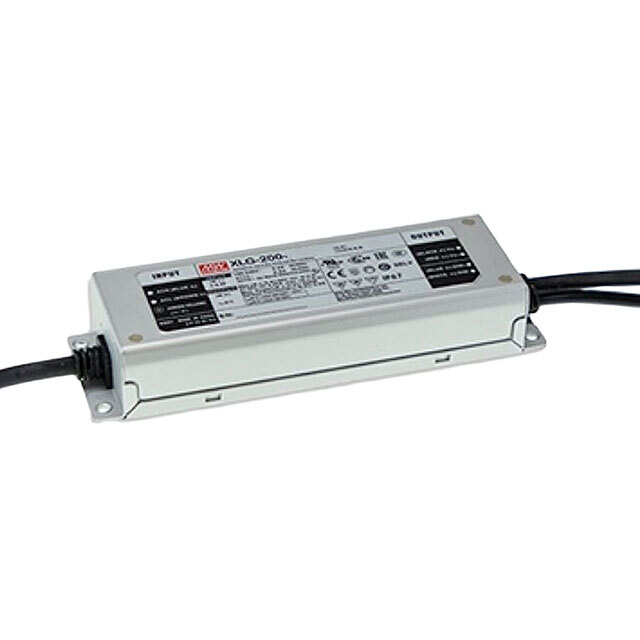

XLG-200-L-A
ActiveMEAN WELL USA Inc.
200W LED POWER SUPPLY O/P +142~2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XLG-200-L-A
ActiveMEAN WELL USA Inc.
200W LED POWER SUPPLY O/P +142~2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLG-200-L-A |
|---|---|
| Approval Agency | CCC, CB, cURus, EAC, ENEC, RCM, CE |
| Current - Output (Max) [Max] | 700 mA |
| Efficiency | 94 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 200 W |
| Ratings | IP67 |
| Size / Dimension [x] | 6.89 in |
| Size / Dimension [x] | 175 mm |
| Size / Dimension [y] | 63 mm |
| Size / Dimension [y] | 2.48 in |
| Size / Dimension [z] | 35.5 mm |
| Size / Dimension [z] | 1.4 " |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Isolation | 4.2 kV |
| Voltage - Output [Max] | 285 V |
| Voltage - Output [Min] | 142 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 38.61 | |
| 5 | $ 35.81 | |||
| 10 | $ 34.67 | |||
| 25 | $ 33.22 | |||
Description
General part information
XLG-200 Series
700mA 142 ~ 285V Constant Current LED Driver AC DC Converter Topology 1 Output
