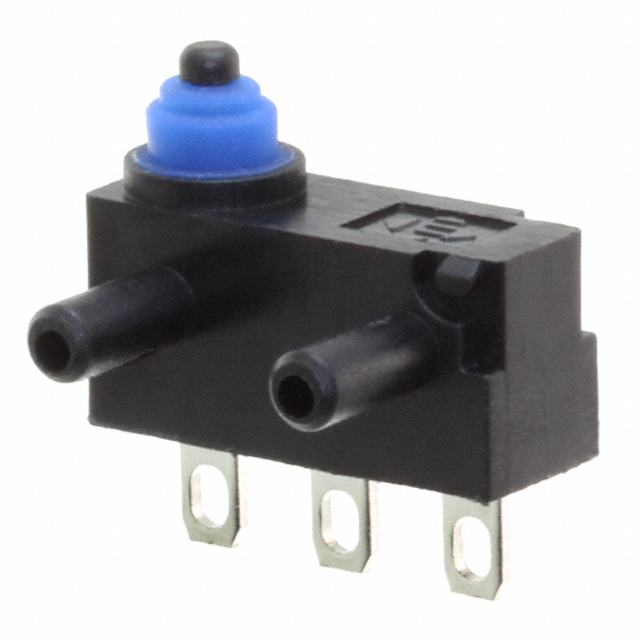

WS0850100F070SA
ActiveE-Switch
SWITCH SNAP ACTION SPDT 1A 24V
Deep-Dive with AI
Search across all available documentation for this part.
WS0850100F070SA
ActiveE-Switch
SWITCH SNAP ACTION SPDT 1A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WS0850100F070SA |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 1 A |
| Electrical Life | 10000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 70 gf |
| Operating Position | 0.413 in |
| Operating Position | 10.5 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.41 | |
| 10 | $ 2.22 | |||
| 25 | $ 2.08 | |||
| 50 | $ 2.04 | |||
| 100 | $ 1.63 | |||
Description
General part information
WS0850 Series
Switch SPDT Chassis Mount
Documents
Technical documentation and resources
No documents available
