300-32542

Obsolete

HELLERMANNTYTON

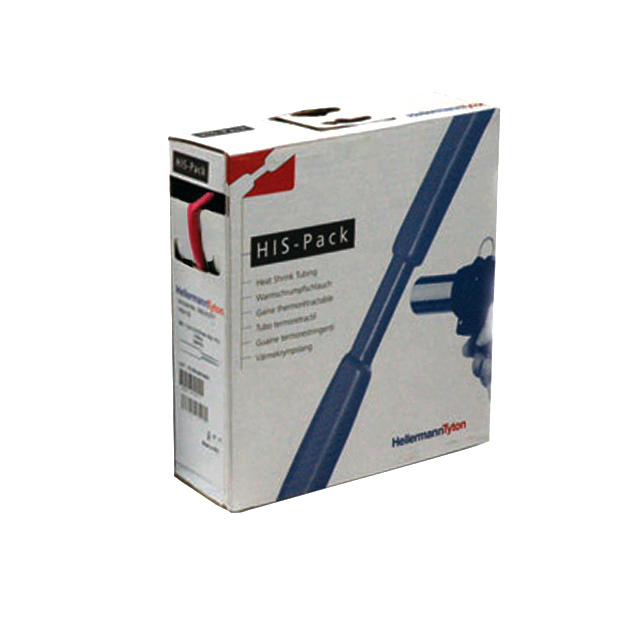

HEATSHRINK 1" RED

Search across all available documentation for this part.

Obsolete

HELLERMANNTYTON

HEATSHRINK 1" RED

Technical Specifications

Parameters and characteristics for this part

Specification	300-32542

Color	Red
Features	Corrosion Resistant, Self Extinguishing
Inner Diameter - Recovered [diameter]	0.5 in
Inner Diameter - Recovered [diameter]	12.7 mm
Inner Diameter - Supplied [diameter]	1 in
Inner Diameter - Supplied [diameter]	25.4 mm
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.89 mm
Recovered Wall Thickness	0.035 in
Shrink Temperature	120 °C
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

Part	Recovered Wall Thickness	Recovered Wall Thickness	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Shrink Temperature	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Features	Shrinkage Ratio
HELLERMANNTYTON 300-32542	0.89 mm	0.035 in	Tubing Flexible	1 in	25.4 mm	Polyolefin (PO)	120 °C	0.5 in	12.7 mm	Red	135 °C	-55 °C	Corrosion Resistant Self Extinguishing	2 to 1
HELLERMANNTYTON 300-32547	0.89 mm	0.035 in	Tubing Flexible	1 in	25.4 mm	Polyolefin (PO)	120 °C	0.5 in	12.7 mm	Green Yellow	135 °C	-55 °C	Corrosion Resistant Self Extinguishing	2 to 1
HELLERMANNTYTON 300-32540	0.89 mm	0.035 in	Tubing Flexible	1 in	25.4 mm	Polyolefin (PO)	120 °C	0.5 in	12.7 mm	Black	135 °C	-55 °C	Corrosion Resistant Self Extinguishing	2 to 1
