150240-6002-RB

Active

3M (TC)

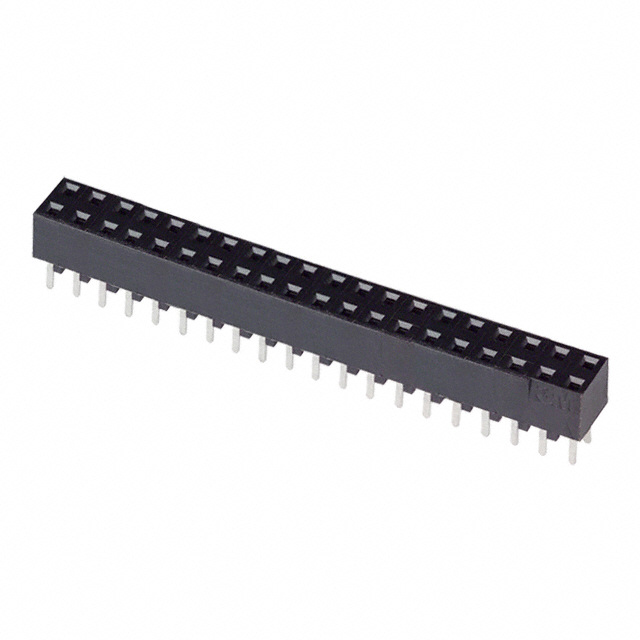

CONN RCPT 40POS 0.079 GOLD PCB

Search across all available documentation for this part.

Active

3M (TC)

CONN RCPT 40POS 0.079 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	150240-6002-RB

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.177 in
Insulation Height	4.5 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	500 V

Part	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Fastening Type	Contact Finish - Mating	Termination	Contact Finish - Post	Contact Shape	Insulation Height	Insulation Height	Mounting Type	Insulation Color	Number of Rows	Material Flammability Rating	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Voltage Rating	Connector Type	Style	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Features
3M (TC) 150240-6002-RB	Female Socket	30 Áin	0.76 Ám	Thermoplastic	Push-Pull	Gold	Solder	Tin	Square	0.177 in	4.5 mm	Through Hole	Black	2	UL94 V-0	Copper Alloy	0.079 in	2 mm	0.079 in	2 mm	200 µin	5.08 µm	40	500 V	Receptacle	Board to Board Cable	All	105 ░C	-55 °C	2.54 mm	0.1 in
3M (TC) 150240-5002-RB	Female Socket	30 Áin	0.76 Ám	Thermoplastic	Push-Pull	Gold	Solder	Tin	Square	0.179 "	4.55 mm	Through Hole Right Angle	Black	2	UL94 V-0	Copper Alloy	0.079 in	2 mm	0.079 in	2 mm	200 µin	5.08 µm	40	500 V	Receptacle	Board to Board Cable	All	105 ░C	-55 °C	2.54 mm	0.1 in
3M (TC) 150240-2020-TH	Female Socket	15 µin	0.38 µm	Thermoplastic	Push-Pull	Gold	Solder	Tin-Lead	Square	0.183 in	4.65 mm	Surface Mount	Black	2	UL94 V-0	Copper Alloy	0.079 in	2 mm	0.079 in	2 mm	200 µin	5.08 µm	40	500 V	Receptacle	Board to Board Cable	All	105 ░C	-55 °C			Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
