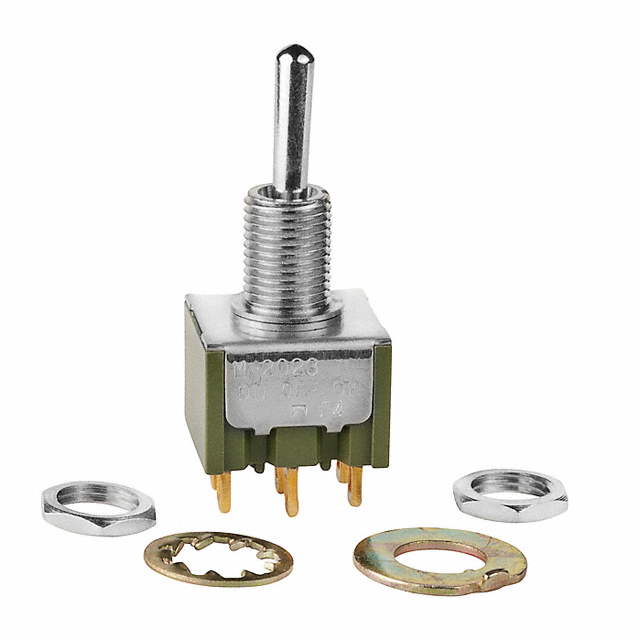

M2023SS1G01
ObsoleteNKK Switches
SWITCH TOGGLE DPDT 0.4VA 28V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M2023SS1G01
ObsoleteNKK Switches
SWITCH TOGGLE DPDT 0.4VA 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M2023SS1G01 |
|---|---|
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Standard Round |
| Bushing Thread | 1/4-40 |
| Circuit | DPDT |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 50000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 6.5 mm |
| Switch Function | On-Off-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
M2023SS Series
| Part | Voltage Rating - AC | Electrical Life | Current Rating (Amps) | Circuit | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Material | Panel Cutout Dimensions [diameter] | Illumination | Termination Style | Actuator Type | Voltage Rating - DC | Features | Bushing Thread | Actuator Length [x] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 125 V | 25000 Steps | 3 A 6 A | DPDT | On-Off-On | -30 ░C | 85 °C | Brass Chrome Plated | 6.5 mm | Non-Illuminated | Solder Lug | Standard Round with Cap | 30 V | Blue Cap | 1/4-40 | 13.5 mm | |
NKK Switches | 125 V | 25000 Steps | 3 A 6 A | DPDT | On-Off-On | -30 ░C | 85 °C | Brass Chrome Plated | 6.5 mm | Non-Illuminated | Solder Lug | Standard Round with Cap | 30 V | White Cap | 1/4-40 | 13.1 mm | |
NKK Switches | 125 V | 25000 Steps | 3 A 6 A | DPDT | On-Off-On | -30 ░C | 85 °C | Brass Chrome Plated | 6.5 mm | Non-Illuminated | PC Pin | Standard Round with Cap | 30 V | Blue Cap | 1/4-40 | 13.5 mm | |
NKK Switches | 125 V | 25000 Steps | 3 A 6 A | DPDT | On-Off-On | -30 ░C | 85 °C | Brass Chrome Plated | 6.5 mm | Non-Illuminated | Solder Lug | Standard Round | 30 V | Epoxy Sealed Terminals | M6 x 0.75 | ||
NKK Switches | 125 V | 25000 Steps | 3 A 6 A | DPDT | On-Off-On | -30 ░C | 85 °C | Brass Chrome Plated | 6.5 mm | Non-Illuminated | Wire Wrap | Standard Round | 30 V | Epoxy Sealed Terminals | M6 x 0.75 | ||
NKK Switches | 125 V | 25000 Steps | 3 A 6 A | DPDT | On-Off-On | -30 ░C | 85 °C | Brass Chrome Plated | 6.5 mm | Non-Illuminated | Wire Wrap | Standard Round | 30 V | Epoxy Sealed Terminals | 1/4-40 | ||
NKK Switches | 28 V | 50000 Cycles | 0.4 VA | DPDT | On-Off-On | -30 ░C | 85 °C | Brass Chrome Plated | 6.5 mm | Non-Illuminated | Solder Lug | Standard Round | 28 V | Epoxy Sealed Terminals | 1/4-40 | ||
NKK Switches | 125 V | 25000 Steps | 3 A 6 A | DPDT | On-Off-On | -30 ░C | 85 °C | Brass Chrome Plated | 6.5 mm | Non-Illuminated | Solder Lug | Standard Round | 30 V | Epoxy Sealed Terminals | 1/4-40 | ||
NKK Switches | 125 V | 25000 Steps | 3 A 6 A | DPDT | On-Off-On | -30 ░C | 85 °C | Brass Chrome Plated | 6.5 mm | Non-Illuminated | Wire Wrap | Standard Round | 30 V | Epoxy Sealed Terminals | 1/4-40 | ||
NKK Switches | 28 V | 50000 Cycles | 0.4 VA | DPDT | On-Off-On | -30 ░C | 85 °C | Brass Chrome Plated | 6.5 mm | Non-Illuminated | PC Pin | Standard Round with Cap | 28 V | Black Cap | Unthreaded | 13.5 mm | Through Hole Right Angle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.94 | |
| 10 | $ 8.95 | |||
| 25 | $ 8.58 | |||
Description
General part information
M2023SS Series
Toggle Switch DPDT Panel Mount
