25054 BK005

Active

ALPHA WIRE

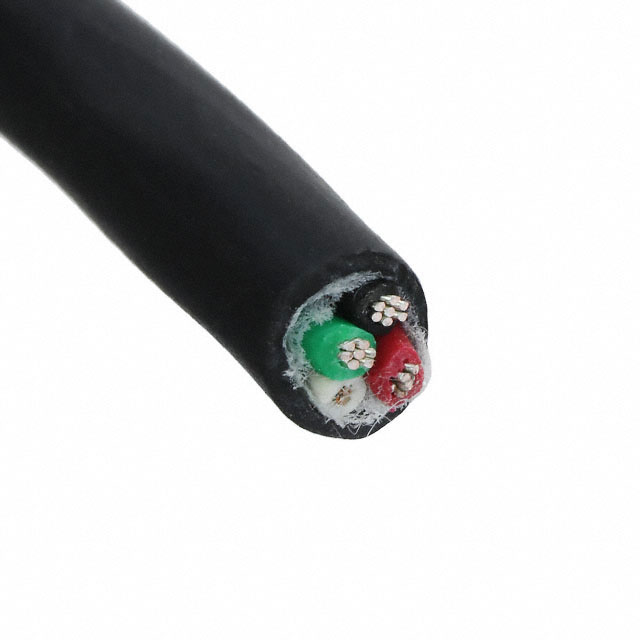

CABLE 4COND 20AWG BLACK 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 20AWG BLACK 100'

Technical Specifications

Parameters and characteristics for this part

Specification	25054 BK005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	6.05 mm
Jacket (Insulation) Diameter [diameter]	0.238 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	4
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Voltage	300 V
Wire Gauge	20 AWG

Part	Wire Gauge	Features	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Conductor Material	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Jacket Color	Ratings	Cable Type
ALPHA WIRE 25054 BK005	20 AWG	Biological Compatibility Rip Cord	Poly-Vinyl Chloride (PVC)	-30 ░C	90 °C	4	Copper Tinned	300 V	28	7	Polyurethane (PU)	6.05 mm	0.238 in	30.5 m	100 ft	Black	ISO 10993 UL Style 20668	Multi-Conductor
ALPHA WIRE 25054 OR199	20 AWG	Biological Compatibility Rip Cord	Poly-Vinyl Chloride (PVC)	-30 ░C	90 °C	4	Copper Tinned	300 V	28	7	Polyurethane (PU)	6.05 mm	0.238 in			Orange	ISO 10993 UL Style 20668	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Black 20 AWG 100.0' (30.5m)
