ATES-RYGBC

Active

Menics

COMPLETE UNIT MULT FLASH 5STACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATES-RYGBC

Active

Menics

COMPLETE UNIT MULT FLASH 5STACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATES-RYGBC

Features	Selector Control
Function - Lighting	Steady, Flashing
Light Color	Yellow, Red, Clear, Green, Blue
Number of Stacks	5
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-15 °C
Termination Style	Cable with Connector
Type	Complete Unit
Voltage - Supply	110 VAC/DC

ATES-R Series

Part	Voltage - Supply	Function - Lighting	Number of Stacks	Light Color	Function - Audible	Operating Temperature [Min]	Operating Temperature [Max]	Type	Features	Termination Style
Menics ATES-RG-Z	110 VAC/DC	Flashing Steady	2	Green Red	Continuous	-15 °C	40 °C	Complete Unit	Adjustable Volume Selector Control	Cable with Connector
Menics ATES-RYGB-Z	110 VAC/DC	Flashing Steady	4	Blue Green Red Yellow	Continuous	-15 °C	40 °C	Complete Unit	Adjustable Volume Selector Control	Cable with Connector
Menics ATES-RY-Z	110 VAC/DC	Flashing Steady	2	Red Yellow	Continuous	-15 °C	40 °C	Complete Unit	Adjustable Volume Selector Control	Cable with Connector
Menics ATES-RYG	110 VAC/DC	Flashing Steady	3	Green Red Yellow		-15 °C	40 °C	Complete Unit	Selector Control	Cable with Connector
Menics ATES-RYGBC	110 VAC/DC	Flashing Steady	5	Blue Clear Green Red Yellow		-15 °C	40 °C	Complete Unit	Selector Control	Cable with Connector
Menics ATES-RYGB	110 VAC/DC	Flashing Steady	4	Blue Green Red Yellow		-15 °C	40 °C	Complete Unit	Selector Control	Cable with Connector
Menics ATES-RY-B	110 VAC/DC	Flashing Steady	2	Red Yellow	Continuous	-15 °C	40 °C	Complete Unit	Selector Control	Cable with Connector
Menics ATES-RYGB-B	110 VAC/DC	Flashing Steady	4	Blue Green Red Yellow	Continuous	-15 °C	40 °C	Complete Unit	Selector Control	Cable with Connector
Menics ATES-R-Z	110 VAC/DC	Flashing	1	Red	Continuous	-15 °C	40 °C	Complete Unit	Adjustable Volume Selector Control	Cable with Connector
Menics ATES-RYG-B	110 VAC/DC	Flashing Steady	3	Green Red Yellow	Continuous	-15 °C	40 °C	Complete Unit	Selector Control	Cable with Connector

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 320.00

Description

General part information

ATES-R Series

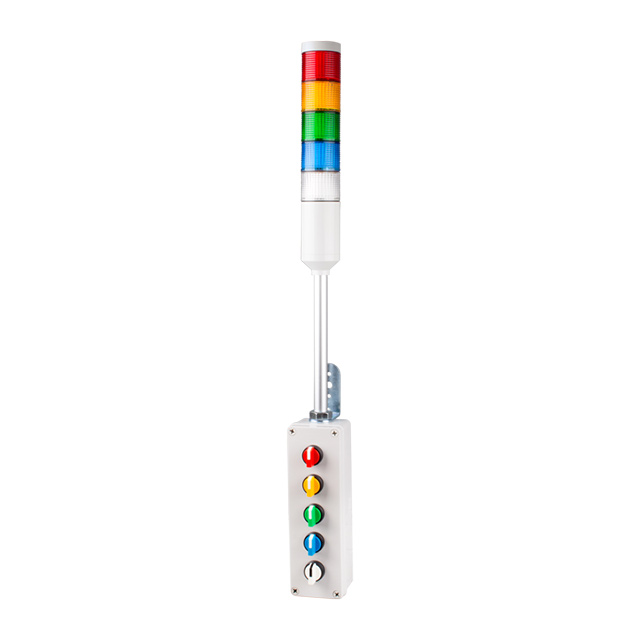

Stack Light Complete Unit Blue, Clear, Green, Red, Yellow LED Selector Control Cable with Connector

Documents

Technical documentation and resources
