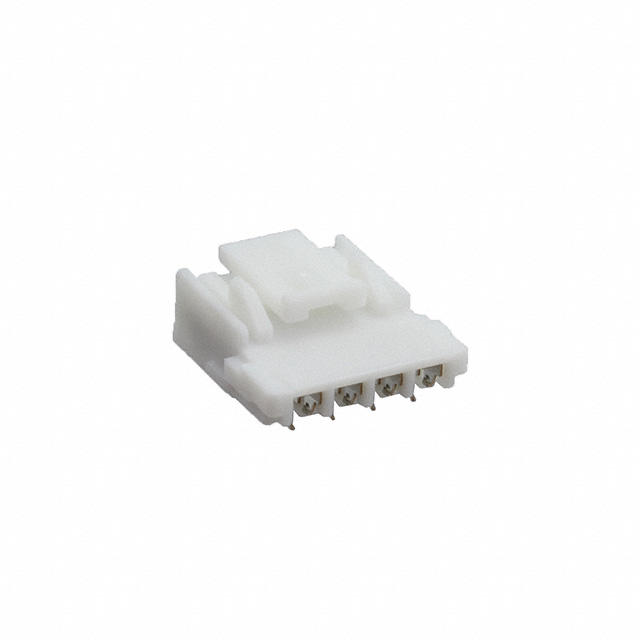

04XAF-2S
ActiveJST Sales America Inc.
CONN HOUSING XAF POS 2.5MM
Deep-Dive with AI
Search across all available documentation for this part.
04XAF-2S
ActiveJST Sales America Inc.
CONN HOUSING XAF POS 2.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 04XAF-2S |
|---|---|
| Cable Termination | IDC |
| Color | Natural |
| Connector Type | Socket |
| Contact Finish | Tin |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
| Wire Gauge | 22 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.56 | |
| 10 | $ 0.49 | |||
| 25 | $ 0.45 | |||
| 50 | $ 0.42 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.37 | |||
| 800 | $ 0.32 | |||
| 1600 | $ 0.31 | |||
Description
General part information
04XAF Series
4 Position Rectangular Socket Connector IDC Tin 22 AWG
